Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40-IP65 |
| Work Condition | S1.S2.S3 | Certification | CE/CC/FCC/ISO9001/RoHs |
Advantages
- 01Ultra-High Efficiency Gearbox, reaching up to 90%: This series employs quasi-hypoid gear transmission, featuring optimized tooth surface contact and high meshing precision, significantly reducing energy loss during transmission.
- 02High output torque and strong load capacity:Internal gears are crafted from premium alloy steel, undergo surface hardening to form a hardened tooth surface, and feature high tooth surface hardness with excellent finish. This not only enhances wear resistance but also significantly increases output torque.
- 03
Wide gear ratio range with fine adjustment capability:
Different models cover a wide range of reduction ratios. For example, models like TKM28 and TKM38 offer reduction ratios from 7.5 to 300. The TKM58 achieves single-stage reduction ratios from 2 to 230, while its two-stage version can reach ratios from 230 to 24,000. - 04Compact structure with strong adaptability: The housing is cast from high-quality aluminum alloy, featuring a compact size, lightweight construction, and corrosion resistance. Most models share compatible mounting dimensions with NMRV series worm gear reducers, allowing for replacement without significant modifications to the equipment mounting structure.
Motor Technical Data
| Model | Voltage | Frequency | Current | Power | Speed | Torque | Efficiency | Power Factor |
| V | HZ | A | W | rpm | N.m | % | cosΦ | |
| BG6312AC-11028S | 110 | 50 | 2.96 | 1800 | 2800 | 0.61 | 66% | 0.92 |
| BG6312AC-22028S | 220 | 50 | 1.48 | 1800 | 2800 | 0.61 | 66% | 0.92 |
| BG6322AC-22028S | 220 | 50 | 1.96 | 2500 | 2800 | 0.85 | 67% | 0.92 |
| Model | Reduction Ratio | 1：X | 1：7.5 | 1：15 | 1：30 | 1：60 | 1：30 | 1：100 | 1：150 | 1：200 | |
| BG6322AC-22028S | Rated speed | rpm | 373 | 187 | 93 | 47 | 93 | 28 | 19 | 11 | |
| Rated torque | N.m | 5.48 | 10.97 | 21.93 | 43.86 | 73.10 | 109.65 | 182.75 | 219.30 | ||

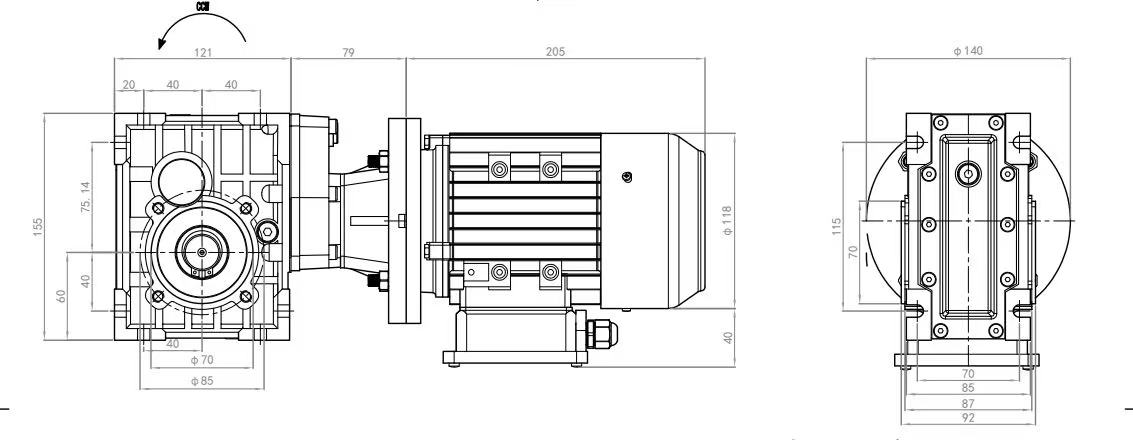

Mechanical Dimensions
Customizable solutions
With a reduction ratio of 120, it features an extremely efficient gearbox with an efficiency rating of up to 90%.
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers
Parts
Applications
Motor Selection Details
01Scenarios and working conditions:
Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dustproof, and other characteristics are required.
- 02Required output parameters:
Determine the required output speed and output torque.Determine the required reduction ratio, i.e. the ratio of the speed of the input shaft to the output shaft.
03
Space Constraints And Installation Requirements:Determine the size and shape of the installation space.Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.04Motor Performance And Efficiency Requirements:
Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy.Determine the requirements for the stability of the motor operation and the noise level.
05Economic Considerations:
Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.06Additional Features And Special Requirements:
If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail07Finally:
By gathering and understanding these details, we can more precisely recommend the most suitable geared motor for our customers to meet their specific application needs and expected performance requirements.
