The customer is developing a professional drone for live streaming and aerial photography.
The end users are media teams and aerial photographers.
The core demand is very clear:
Stable flight
No shaking
No vibration
Strong wind resistance
High safety and reliability
The drone requires smooth hovering, precise control, and long continuous flight time.
To achieve this, the customer selected the 2212 outrunner brushless motor, KV range 900KV–1800KV.
BG Motor was responsible for providing the most suitable motor solution for this project.
Image shake caused by motor vibration
Poor wind resistance during outdoor flight
High KV motor overheating
High safety requirement for live streaming over crowds

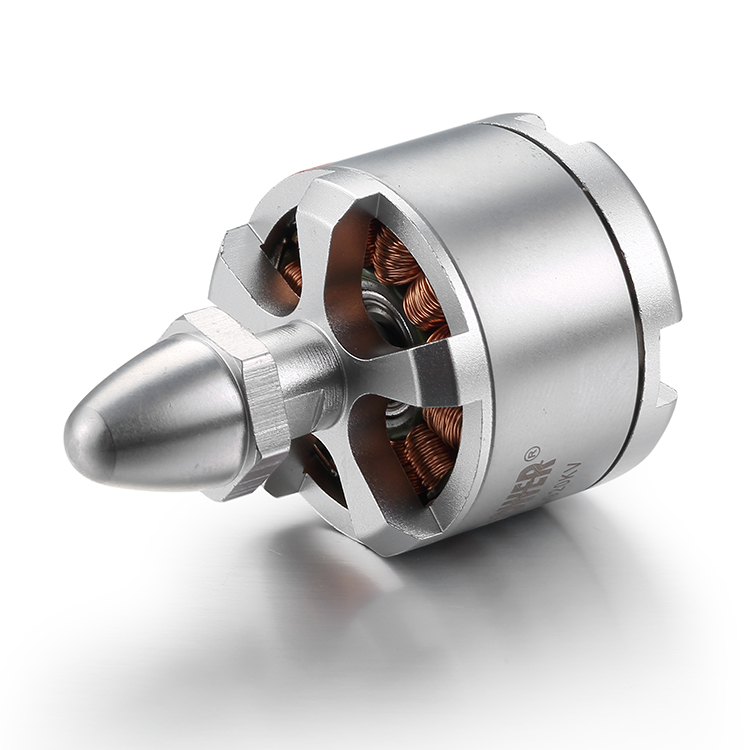

After analyzing the application scenario, BG Motor customized the 2208 high-efficiency outrunner motor.
Motor Type: Brushless DC Outrunner
Model: 2212
KV Value: 900KV / 1200KV / 1500KV / 1800KV
Rated Voltage: 3S–4S LiPo (11.1V–14.8V)
Max Power: 180W–260W
Max Continuous Current: 15A–22A
Max Thrust (10–11 inch propeller): 800g–1200g
No-load Current: ≤0.8A
Efficiency: ≥85%
Noise Level: ≤40dB
Dynamic Balance Accuracy: ≤5mg
Bearing: High-precision imported bearings
High-precision dynamic balancing
CNC machined rotor structure
Strict concentricity control
Vibration ≤6.1mm/s²
Drone hovering becomes extremely smooth.
Live image remains stable even without heavy gimbal correction.
High torque density design
Optimized magnetic circuit
Fast throttle response
Stable torque output at mid-speed
When sudden wind hits, the motor responds instantly.
The drone corrects position quickly without visible swing.
Smooth sinusoidal output
Low cogging torque
High magnetic pole precision
This eliminates micro-jerk during acceleration and deceleration.
Camera motion becomes fluid and professional.
High temperature resistant copper winding
Precision bearing system
99.99% quality pass rate
Strict factory performance testing
The motor maintains stable performance even under long continuous operation.
Live streaming projects can operate safely in complex environments
One-to-one engineering support
Thrust test report
Performance curve
100% inspection
CE / ROHS / CCC certified
Fast response within 24 hours
✔ More stable flight
✔ Reduced vibration
✔ Improved wind resistance
✔ Clear live streaming image
✔ Higher safety
BG Motor provides high-precision, high-performance, low-vibration outrunner motors for professional drone aerial photography applications.
