Information
Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Advantages
- 01High torque output:The planetary gear structure can provide high torque output, which is suitable for small equipment that requires large torque.
- 02High efficiency:The efficiency of planetary gear reducer motor is usually relatively high, about 85%-95%.
- 03High rigidity and precision:The planetary gear has a compact structure, which can ensure the high rigidity and high precision of the transmission system.
- 04Small size:Due to the unique design of planetary gears, it is smaller in size and light in weight while providing the same output power.
05Smooth operation:
Due to the uniform distribution of gears, the operation of the planetary geared motor is very smooth and the noise is low.
Motor Technical Data
| Model | Voltage | No-load | Rated Load | Stall | |||||
| Speed | Current | Power | Speed | Torque | Current | Torque | Current | ||
| V | rpm | A | W | rpm | Nm | A | Nm | A | |
| BG-110BL134-41450 | 48 | 18 | 2.5 | 850 | 15 | 200 | 12 | 600 | 36 |
| Model | Reduction Ratio | 1：X | 1：4 | 1：10 | 1：24 | 1：36 | 1：64 | 1：96 | 1：144 | 1：216 | |
| Gearbox length | L：mm | 117 | 142 | 60.8 | |||||||
| BG-110BLDC-31030S-3-PG110 | NO-load speed | rpm | 1000 | 400 | 167 | 111 | 63 | 42 | 28 | 19 | |
| Rated speed | rpm | 750 | 300 | 125 | 83 | 47 | 31 | 21 | 14 | ||
| Rated torque | N.m | 34.38 | 77.36 | 160.00 | 160.00 | 160.00 | 160.00 | 160.00 | 160.00 | ||

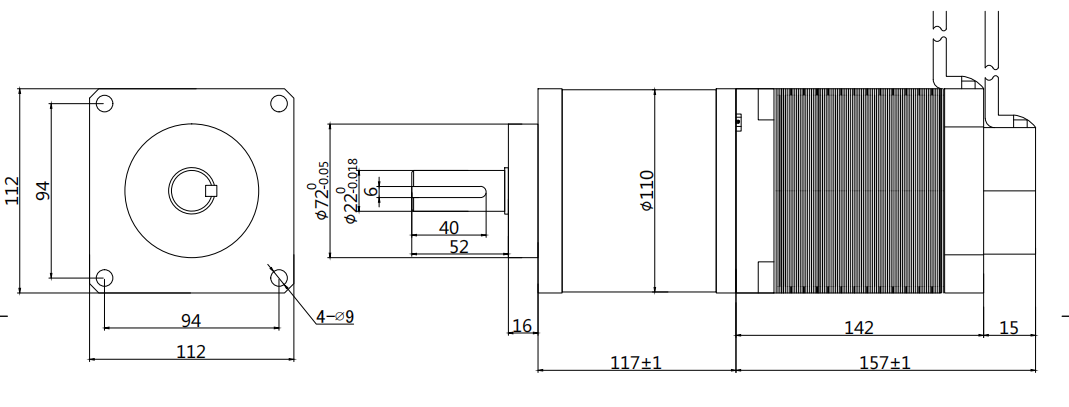

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers.
