Description
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤60dB | Protection Class | IP40-IP65 |
| Work Condition | S1.S2.S3 | Certification | CE/CC/FCC/ISO9001/RoHs |
Advantages
- 01High Torque Output & High Rigidity: The dual RV structure provides a large load-bearing area, enabling torque output far exceeding that of gearmotors of comparable size. It can withstand significant radial and axial loads, making it suitable for heavy-duty and continuous operation scenarios.
- 02Ultra-Low Backlash & High-Precision Control:Backlash can be minimized ≤ 1 arcminute, ensuring precise and stable motion. This makes it highly suitable for high-precision equipment such as robotic joints and positioning platforms.
- 03
Long Service Life & Exceptional Stability:
Multi-tooth meshing distributes loads evenly, minimizing wear and extending lifespan. Supports 24/7 high-load industrial operation with stable performance and minimal degradation.
- 04Low Noise, Low Vibration & Compact Design: Operates smoothly with minimal noise and vibration. Its compact structure facilitates integration into space-constrained applications like robots, AGVs, and medical equipment.
Motor Technical Data
| Model | Voltage | No-load | Rated Load | Stall | Body Length | ||||||
| Speed | Current | Power | Speed | Torque | Current | Torque | Current | ||||
| V | rpm | A | W | rpm | Nm | A | Nm | A | L:mm | ||
| BG126ZYTDC-2421S | 24 | 2300 | 2.22 | 400 | 2100 | 1.82 | 22.2 | 7.28 | 88.89 | 80 | |
| BG126ZYTDC-4815S | 48 | 1650 | 0.83 | 300 | 1500 | 1.91 | 8.3 | 7.64 | 33.33 | 100 | |
| BG126BZYTDC-11027S | 110 | 2850 | 0.55 | 450 | 2700 | 1.59 | 5.5 | 6.37 | 21.82 | 120 | |
| BG126ZYTDC-18017S | 180 | 1850 | 0.26 | 350 | 1700 | 1.97 | 2.6 | 7.86 | 10.37 | 140 | |
| Model | Reduction Ratio | 1：X | 1：200 | 1：400 | 1：500 | 1：600 | 1：800 | 1：1000 | 1：1200 | 1：1500 | |
| BG-126ZYTDC-11027S-RV40-RV75 | NO-load speed | rpm | 14 | 10 | 8 | 7 | 5 | 4 | 3 | 3 | |
| Rated speed | rpm | 14 | 8 | 6 | 5 | 4 | 3 | 3 | 2 | ||
| Rated torque | N.m | 114.48 | 260.00 | 260.00 | 260.00 | 260.00 | 260.00 | 260.00 | 260.00 | ||

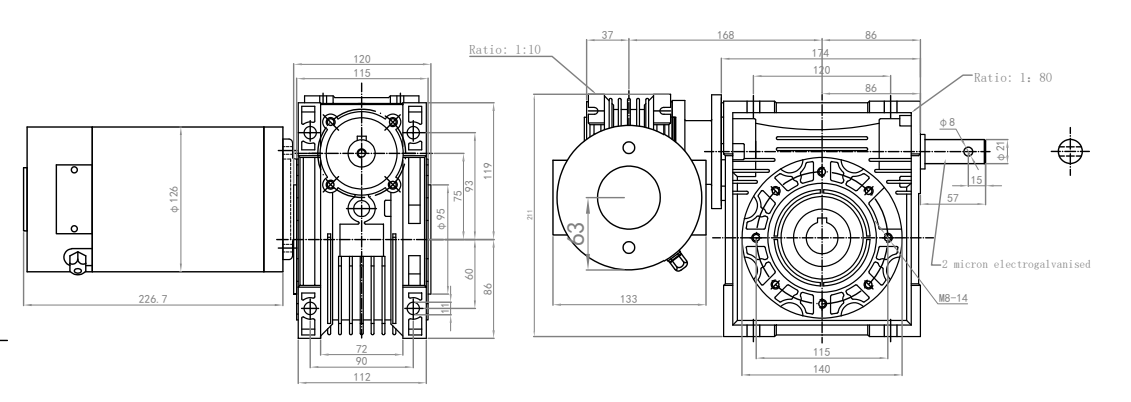

Mechanical Dimensions
Customizable solutions
Can provide custom voltage, electrical performance, circuit, etc.
And shaft, installation flange, lead wire, high-temperature class, drive, etc.
If you have any other needs, please contact our sales engineers
Parts
Applications
Motor Selection Details
01Scenarios and working conditions:
Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dustproof, and other characteristics are required.
- 02Required output parameters:
Determine the required output speed and output torque.Determine the required reduction ratio, i.e. the ratio of the speed of the input shaft to the output shaft.
03
Space Constraints And Installation Requirements:Determine the size and shape of the installation space.Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.04Motor Performance And Efficiency Requirements:
Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy.Determine the requirements for the stability of the motor operation and the noise level.
05Economic Considerations:
Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.06Additional Features And Special Requirements:
If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail07Finally:
By gathering and understanding these details, we can more precisely recommend the most suitable geared motor for our customers to meet their specific application needs and expected performance requirements.
