Customized DC Motor Solutions: How to Optimize Shaft Design, Lead Wires, Protection Ratings, and Motor Performance for Your Equipment

Selecting a DC motor is not simply a matter of choosing voltage and speed. For industrial manufacturers, robotics developers, medical equipment producers, and automation system integrators, a standard motor often cannot fully meet the requirements of the final application. Factors such as installation space, environmental conditions, transmission methods, and control systems all influence motor performance and long-term reliability. This is why customized DC motor solutions have become increasingly important for modern equipment manufacturers.

At BG Motor, we understand that every application has unique requirements. With years of experience in motor design and manufacturing, we provide customized DC brushed and brushless DC motor solutions that are tailored to your equipment, helping you achieve better efficiency, lower noise, longer service life, and improved overall system performance.

Shaft Customization: Ensuring Perfect Mechanical Integration

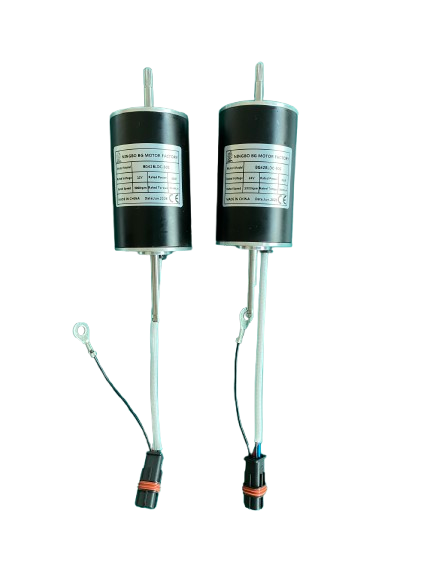

On the right is a dual-output DC motor specially customized for the customer

The motor shaft serves as the direct connection between the motor and the driven equipment, making it one of the most critical components in the customization process. Even if a motor meets all electrical performance requirements, an unsuitable shaft design can lead to installation difficulties, transmission inefficiencies, excessive vibration, or premature wear.

To address different application needs, shaft diameter, length, and geometry can all be customized according to customer drawings and technical requirements. Depending on the transmission method, customers may choose D-shafts, round shafts, keyway shafts, splined shafts, threaded shafts, or other special designs. For example, AGV robots and automatic door systems often require D-shafts for secure coupling, while industrial robotic joints may benefit from splined shaft designs that can transmit higher torque and improve positioning accuracy.

By customizing the shaft structure to match the actual mechanical system, manufacturers can simplify assembly processes, improve power transmission efficiency, and reduce maintenance costs over the product lifecycle.

Lead Wire and Connector Customization for Simplified Installation

In many projects, the motor is installed in a limited space where wiring accessibility can become a significant challenge. Standard lead wire configurations may not fit the equipment layout, resulting in additional assembly work and increased production costs.

Customized lead wire solutions allow manufacturers to specify wire length, wire type, exit direction, and connector configuration according to the actual installation environment. Depending on the operating conditions, PVC-insulated wires, silicone high-temperature cables, or shielded wires can be selected to ensure stable electrical performance and durability. Lead wires can be designed to exit from the rear, side, or a customized position to facilitate assembly within compact equipment.

For motors equipped with advanced control functions, additional wiring can also be integrated for Hall sensors, encoders, brakes, or temperature monitoring devices. Furthermore, customized connectors such as JST, Molex, AMP, or waterproof connectors can be pre-installed, reducing assembly time and improving overall system reliability.

Protection Rating Customization for Harsh Operating Environments

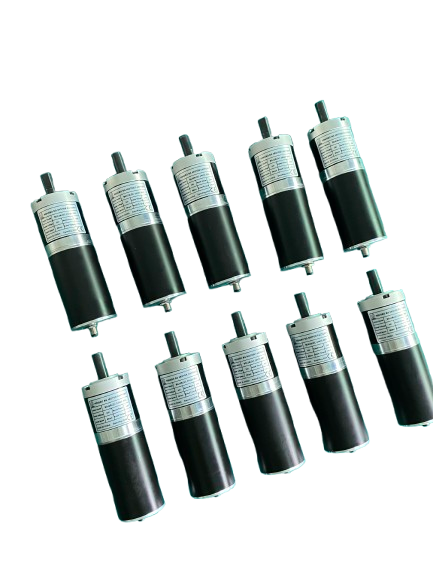

On the right is our custom high-protection IP65 DC motor specifically for customers

Environmental conditions play a major role in determining motor service life and operational stability. Motors used in dusty workshops, outdoor automation systems, cleaning equipment, or underwater applications require higher levels of protection than standard industrial motors.

To meet these requirements, BG Motor offers protection ratings ranging from basic industrial protection to fully sealed waterproof designs. For indoor equipment such as coffee grinders, automatic doors, and household appliances, an IP54-rated motor may provide sufficient protection against dust and accidental water exposure. For logistics equipment, AGV systems, and industrial automation applications operating in more demanding environments, IP65 protection can effectively prevent dust ingress and water spray damage.

For underwater robots, marine equipment, and specialized outdoor machinery, motors can be customized with IP67 or even IP68 protection levels. Advanced sealing structures, corrosion-resistant materials, and optimized housing designs ensure reliable operation even in environments involving long-term exposure to water and moisture.

Customized Voltage, Speed, and Torque to Match Equipment Requirements

Every application has different performance targets, and selecting the right combination of voltage, speed, and torque is essential for achieving optimal efficiency. A motor designed for a medical centrifuge requires completely different operating characteristics from one used in a mobile robot or conveyor system.

BG Motor provides customized brushless DC motor solutions covering power ranges from 5W to 20KW and voltage ranges from DC 6V to 310V, while brushed DC motors can be customized from DC 3V to 220V. Depending on application requirements, motors can be designed for ultra-low-speed high-torque operation or extremely high-speed performance exceeding tens of thousands of revolutions per minute.

For AGV vehicles and robotic systems, low-speed high-torque configurations are often required to ensure stable movement and accurate positioning. In contrast, vacuum cleaners, centrifuges, and air-moving equipment may require extremely high rotational speeds to maximize airflow or centrifugal force. Through electromagnetic design optimization and gearbox integration, the motor's output characteristics can be precisely matched to the needs of the final equipment.

Customized Mounting Structures for Easier Integration

Mechanical compatibility is another key consideration during motor selection. Equipment manufacturers often face strict dimensional limitations that prevent the use of standard motor mounting configurations.

To ensure seamless integration, motor mounting holes, flange structures, housing dimensions, and installation directions can all be customized according to customer requirements. Whether the application requires horizontal installation, vertical mounting, face mounting, flange mounting, or special bracket configurations, the motor structure can be optimized to fit the available installation space while maintaining excellent mechanical stability.

This flexibility is particularly valuable for compact medical devices, service robots, intelligent logistics equipment, and other applications where installation space is limited.

Integrated Solutions for Higher Efficiency and Better Compatibility

As modern equipment becomes increasingly sophisticated, many manufacturers prefer complete drive solutions rather than purchasing individual components from multiple suppliers. Coordinating motors, gearboxes, encoders, brakes, and controllers from different vendors can increase development time and create compatibility risks.

To simplify the procurement and development process, BG Motor provides integrated motor solutions that combine the motor with planetary gearboxes, worm gearboxes, electromagnetic brakes, encoders, drivers, and customized connectors. This approach not only reduces communication costs and sourcing complexity but also ensures that all components are optimized to work together as a complete system.

Conclusion

A customized DC motor is much more than a modified standard product. It is a complete engineering solution designed around your equipment's operating conditions, performance requirements, and installation constraints. By customizing critical elements such as the shaft structure, lead wire configuration, protection rating, mounting method, and drive system integration, manufacturers can significantly improve product reliability, reduce development risks, and enhance overall equipment performance.

Whether you are developing AGV systems, industrial robots, medical devices, smart cleaning equipment, automatic doors, or advanced automation machinery, a professionally customized motor solution can provide the competitive advantage needed to achieve long-term success. At BG Motor, our engineering team works closely with customers to transform technical requirements into reliable, high-performance motor solutions that deliver real value in demanding industrial applications.
