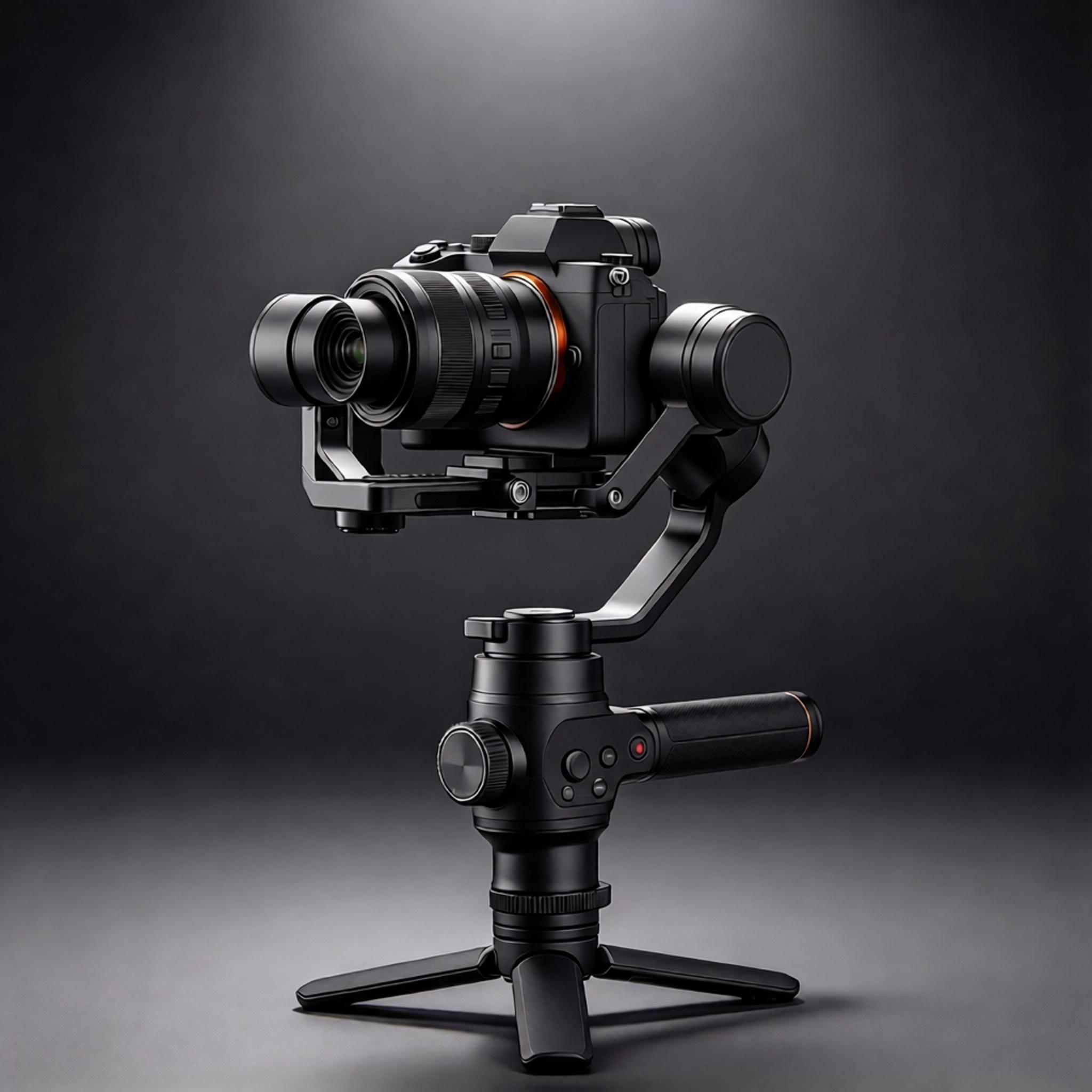

As professional filming, live broadcasting, industrial inspection, and unmanned imaging systems continue to develop, camera gimbals are expected to deliver increasingly stable footage under dynamic operating conditions. Whether mounted on a handheld stabilizer, a robotic platform, or an aerial imaging system, a gimbal must maintain accurate camera orientation while compensating for external vibration and sudden changes in movement.

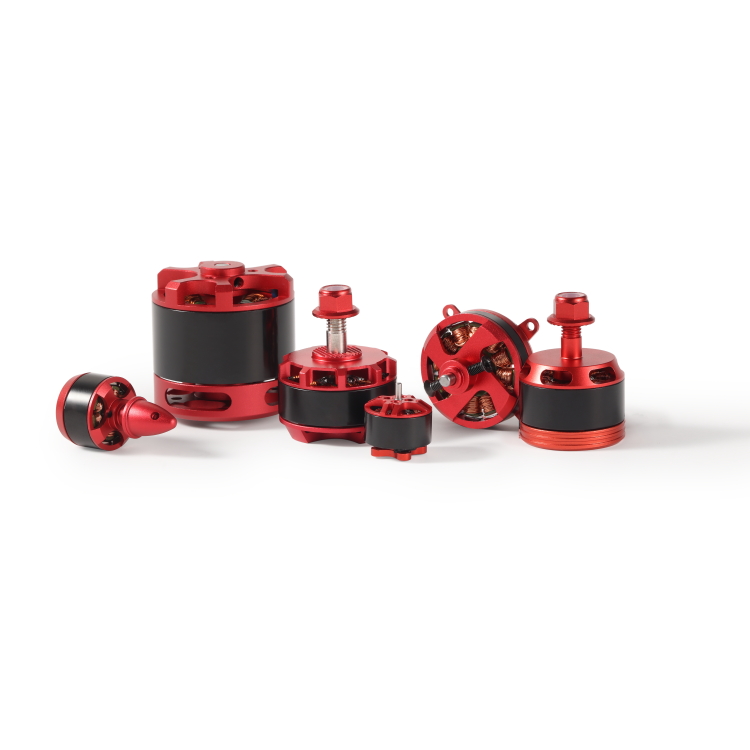

The motor is a critical component in achieving this performance. Unlike conventional drive systems that mainly prioritize speed or output power, a camera gimbal requires smooth low-speed rotation, precise angular positioning, and rapid response to control commands. To address these requirements, BG Motor can develop a customized brushless outer rotor motor solution designed around the gimbal's torque requirements, installation dimensions, control system, and operating environment.
1.The main challenge is maintaining stable camera positioning during continuous, fine-angle adjustments. At low rotational speeds, motor cogging torque, electromagnetic torque ripple, bearing friction, and mechanical imbalance can introduce small disturbances that become visible as image jitter or unwanted camera movement. These effects are particularly important in telephoto imaging, long-exposure photography, and professional video production, where even minor angular deviations may affect image quality.
2.Another challenge is balancing motor size, weight, torque, and heat dissipation. A gimbal motor must provide sufficient torque to support the camera and compensate for changes in its center of gravity without adding unnecessary mass to the stabilizing assembly. Meanwhile, continuous operation can increase winding temperature and affect long-term performance if the motor and controller are not properly matched.
3.Integration also requires attention to the control system. The motor must work effectively with the gimbal controller, position feedback system, and drive electronics to achieve smooth acceleration, accurate positioning, and predictable responses to external disturbances.
Optimized Electromagnetic Design Optimize the rotor-stator configuration, magnetic circuit, and winding parameters to reduce cogging torque and torque ripple, supporting smooth, stable rotation during fine camera adjustments.
Precision Rotor Balancing and Mechanical Design Improve rotor dynamic balance, bearing selection, and manufacturing tolerances to minimize vibration and mechanical disturbances that may affect image stability.
Customized Torque and Compact Structure Customize motor dimensions, shaft configuration, and torque characteristics according to camera payload, axis requirements, and available installation space, balancing stabilization performance with overall gimbal weight.
FOC Control and Position Feedback Integration Integrate the motor with a suitable field-oriented control (FOC) system and position feedback device, where required, to improve low-speed smoothness, angular positioning accuracy, and response to external disturbances.
Thermal Management and Performance Validation Evaluate winding temperature, continuous operating torque, and heat dissipation under representative working conditions, then validate low-speed stability, torque ripple, and vibration performance before finalizing the motor configuration.
For precision camera gimbal applications, reliable technical support is essential throughout integration and operation. BG Motor can work with customers to review motor specifications, installation requirements, controller compatibility, and operating conditions before confirming a suitable customized configuration.
During prototype development, engineering support can help identify potential issues related to vibration, insufficient torque, temperature rise, or unstable low-speed operation. Where necessary, motor parameters and mechanical configurations can be reviewed according to test results, helping customers narrow down the causes of performance issues and improve system integration.
After delivery, BG Motor can provide technical communication regarding installation, operating limits, maintenance requirements, and product customization for subsequent production batches. By maintaining communication between the customer's engineering team and BG Motor's technical staff, the project can move from initial motor selection toward a more thoroughly validated and application-specific solution.
