High-performance drone motors engineered for FPV racing, freestyle, and professional aerial platforms.
Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.To learn more about this drone motor, you can visit our other professional website: https://www.bgs-motor.com
Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.For more details, please visit https://www.bgs-motor.com/drone_motors_products
Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The BGS F2814 outrunner brushless motor is engineered for versatile FPV drones. It outputs stable thrust with quick throttle feedback and high power efficiency, bringing agile and smooth flight experience for freestyle stunts and aerial shooting.For more details, please visit https://www.bgs-motor.com/drone_motors_products
BGS F3008, 1300KV, designed for 6S LiPo battery Matched with HQ 8×4×3 propeller, the test data shows its peak power efficiency reaches 4.3 gf/W at 35% throttle, serving as the most energy-saving hovering range. As throttle increases, rotating speed, current and thrust rise continuously while efficiency gradually declines. At full throttle, it delivers a maximum input power of 1269.2W, peak current 52.62A, top speed 19866RPM and maximum thrust of 2782gf, offering abundant power margin. This motor is well-suited for long-term stable operation of medium & small multirotor UAVs for aerial photography, mapping and inspection missions.For more details, please visit https://www.bgs-motor.com/drone_motors_products
Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The 3115 outer rotor motor is a high-efficiency brushless DC outrunner motor (BLDC), which has the characteristics of compact structure, strong power and high efficiency. The "3115" in the model number usually indicates the stator size: the stator diameter is about 31mm, the stator height is about 15mm.For more details, please visit https://www.bgs-motor.com/drone_motors_products
BGS F3120 Brushless Motor Available in 500KV, 700KV and 1000KV versions for 12S LiPo, it fits 9–11-inch propellers for large freestyle FPV drones. With strong torque, stable high-load performance and good crash resistance, three KV selections satisfy different power demands for agile stunts and steady cinematic flight.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The BGS F3314 outrunner brushless motor is designed for medium-size FPV drones. It provides strong steady thrust, sensitive throttle response and high efficiency, ideal for freestyle flight and aerial photography missions.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The BGS F4214 8S-380KV outrunner brushless motor is specially made for 13-inch freestyle FPV drones. It features strong torque, stable power output and low vibration, perfectly matching 8S batteries and 13-inch propellers for smooth freestyle flying and aerial shooting.For more details, please visit https://www.bgs-motor.com/drone_motors_products
With a stator diameter of about 50 mm, these motors provide extremely high torque, strong thrust, and excellent efficiency, making them ideal for large industrial drones and agricultural UAV applications.For more details, please visit https://www.bgs-motor.com/drone_motors_products
With a stator diameter of around 40 mm, these motors deliver higher torque, stronger thrust, and improved stability, making them ideal for exploration drones that require reliable and efficient propulsion.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The BGS F4315 8S-450KV outrunner brushless motor is tailored for 13-inch freestyle FPV drones. With strong torque and steady power performance, it perfectly pairs with 8S batteries and 13-inch propellers to deliver smooth flight control and reliable power for freestyle stunts and aerial filming.For more details, please visit https://www.bgs-motor.com/drone_motors_products
The BGS F4325 360KV high torque outrunner brushless motor is designed for medium & large heavy-lift industrial UAV, agricultural pesticide spraying drone, cargo delivery drone and aerial surveying equipment. With thicker stator structure and low 360KV large-torque design, it matches 13-inch heavy-duty propeller perfectly, delivering maximum static thrust up to 9kg per motor, with stable and reliable performance under long-term continuous heavy-load operation.For more details, please visit https://www.bgs-motor.com/drone_motors_products
With a stator diameter of around 40 mm, these motors deliver higher torque, stronger thrust, and improved stability, making them ideal for industrial drones that require reliable and efficient propulsion.For more details, please visit https://www.bgs-motor.com/drone_motors_products
With a stator diameter of about 47 mm, these motors provide extremely high torque, strong thrust, and excellent efficiency, making them ideal for large industrial drones and agricultural UAV applications.For more details, please visit https://www.bgs-motor.com/drone_motors_products
When you develop an FPV drone, the motor is not an independent component; it works together with the battery, propeller, ESC and overall aircraft design to determine thrust, efficiency, response and flight time. BG Motor provides brushless FPV drone motors for racing, freestyle, aerial photography, mapping, inspection, long-range and heavy-lift UAV applications, with different motor sizes and KV options to meet different propulsion requirements.
Instead of choosing a motor only by its KV value, you need to consider the complete operating conditions of your drone, including total weight, payload, propeller size, battery voltage, required thrust and expected flight time. Based on these parameters, BG Motor can help you evaluate a suitable motor configuration or develop a customized motor for your application.
The right FPV motor should be selected according to the complete propulsion system rather than one specification. A motor with a suitable KV value may still be unsuitable if its stator size, propeller, battery voltage or thrust capability does not match your drone.
For this reason, we recommend evaluating the motor from four main aspects: motor size and torque, KV and operating speed, battery and propeller matching, and the required thrust and efficiency. When these factors are properly matched, you can achieve a more balanced combination of power, flight response, efficiency and operating temperature.
The stator size has a direct influence on the motor's torque and power capability, so it should be considered together with the propeller and payload of your drone. Smaller motors are generally more suitable for lightweight FPV platforms where low weight and fast response are important, while larger motors can provide the additional torque required to drive larger propellers and carry higher payloads.
Therefore, when you know the drone weight and propeller size, you already have two important reference points for selecting the motor size.
KV represents the motor's no-load RPM per volt, but a higher KV value does not automatically mean better performance. When the same battery voltage is applied, a higher KV motor tends to operate at a higher speed, while a lower KV motor can be more suitable for larger propellers and higher-voltage systems.
The practical selection should therefore consider KV + battery voltage + propeller size + required thrust as one system. This approach helps prevent selecting a motor that operates outside the desired efficiency or current range.
For an FPV drone, the motor must ultimately provide enough thrust for the aircraft to perform its intended task. However, maximum power or maximum RPM alone cannot tell you whether a motor is suitable for your application, because thrust depends on the motor, propeller, battery voltage and operating point.
For engineering evaluation, it is more useful to compare actual test data such as RPM, current, input power, thrust and efficiency under a defined battery and propeller configuration. This allows you to compare motors based on real operating conditions rather than nominal specifications.
The following motor range covers different FPV and UAV applications. Because the actual performance of a motor depends on the selected KV, battery and propeller configuration, you should use the table as an initial selection guide and contact BG Motor when you need detailed test data for a specific combination.
| Motor Model | KV Options | Suitable Application | Typical Configuration | Thrust Reference |
|---|---|---|---|---|

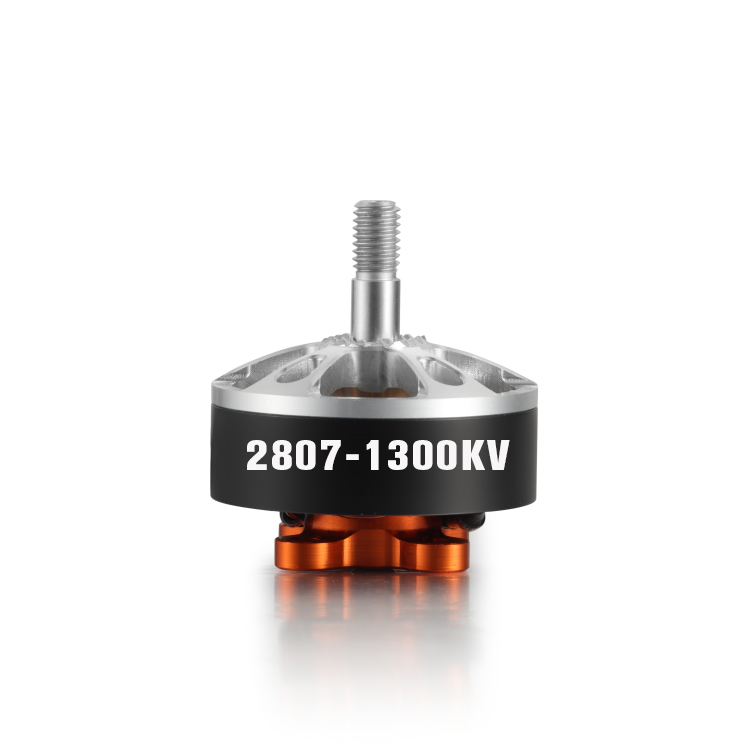

| BG-F2807 | Various | Lightweight FPV UAV | Contact BG Motor | Contact us |
| BG-F2810 | Various | FPV UAV | Contact BG Motor | Contact us |
| BG-F2812 | Various | Larger FPV UAV | Contact BG Motor | Contact us |

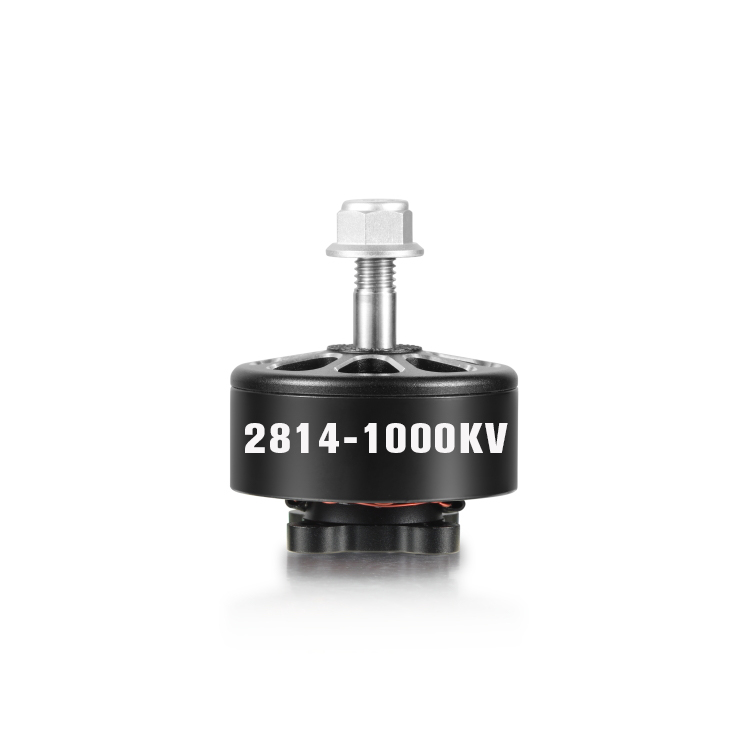

| BG-F2814 | Various | FPV UAV | Contact BG Motor | Contact us |
| BG-F3008 | 1300KV | Aerial photography, mapping and inspection | 6S / HQ 8×4×3 | Up to 2782 gf |
| BG-F3110 | Various | FPV UAV | Contact BG Motor | Contact us |
| BG-F3115 | 900 / 1050KV | Larger FPV UAV | Contact BG Motor | Contact us |
| BG-F3120 | 500 / 700 / 1000KV | Larger UAV applications | Up to 12S | Contact us |
| BG-F3314 | Various | FPV UAV | Contact BG Motor | Contact us |
| BG-F4214 | 380 / 400KV | Larger UAV applications | 13-inch propeller | Up to 6 kg |
| BG-F4219 | Various | Larger UAV applications | Contact BG Motor | Contact us |
| BG-F4320 | Various | Heavy-duty UAV | Contact BG Motor | Contact us |
| BG-F4315 | Various | Larger UAV applications | Contact BG Motor | Contact us |
| BG-F4325 | 360KV | Heavy-lift UAV | Contact BG Motor | Up to 9 kg |
Actual motor performance depends on the motor configuration, battery voltage, propeller and operating conditions. Please contact BG Motor for detailed test data before final selection.
If you are selecting a motor for a commercial drone or developing a new UAV platform, product specifications alone are usually not enough to make a final decision. You need to understand how the motor performs under the actual battery and propeller conditions of your equipment.
BG Motor can provide performance test data for selected motor configurations, including battery voltage, propeller model, throttle, RPM, current, input power, thrust and efficiency. This information allows you to compare different motor configurations according to the actual operating point of your drone and helps you evaluate whether the motor can meet your requirements for thrust, power consumption and overall propulsion performance.
The BG-F3008 1300KV motor provides a practical example of how motor performance can be evaluated using actual test conditions. With a 6S battery and HQ 8×4×3 propeller, the tested configuration reached a maximum input power of 1269.2 W, maximum current of 52.62 A, maximum speed of 19,866 RPM and maximum thrust of 2782 gf, while peak efficiency reached 4.3 gf/W at 35% throttle.
These values should be evaluated together rather than separately, because the same motor can produce different results when the battery voltage, propeller or operating conditions change.
