63 mm Brushed DC Motor Overview
A 63 mm brushed DC motor is a medium-sized permanent magnet motor widely used in industrial and household equipment. With a diameter of 63 mm, it offers a good balance of output torque and compact dimensions. This type of motor typically supports a voltage range from 12 V to 220 V, with rated speeds around 1,500–4,000 RPM and optional planetary gear reducers for higher torque.

Its advantages include simple structure, stable performance, easy maintenance, and the ability to deliver high torque at low speeds when combined with gearboxes. Typical applications include lifting mechanisms, automatic doors, medical instruments, small AGV trolleys, and home appliances such as coffee grinders and juicers.

63mm Brushed DC Motor: Single motor and Multiple Geared motors

A 63 mm brushed DC motor is a versatile and widely used motor size in industrial automation, medical devices, and household equipment. This motor series includes:

• Single Brushed DC Motor (63 mm)

• 63 mm Brushed DC Planetary Geared Motor

• 63 mm Brushed DC Worm Geared Motor

The following will gather these products in detail

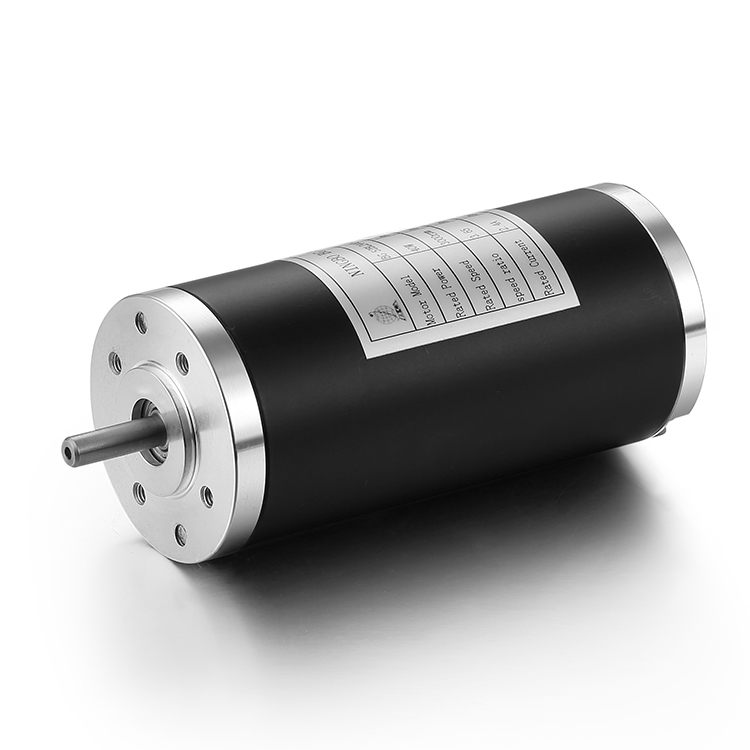

1. 63mm DC brushed single motor (Figure 1)

Range of Power: 52-125W

Range of Voltage:12-110VDC

Range of Rated Speed: 1500-5000rpm

Range of Rated Torque: 0.15-0.4N.m

Lifespan: 1200Hours

Application scenarios: Wheelchairs for the disabled, nursing beds, 3D printers, etc

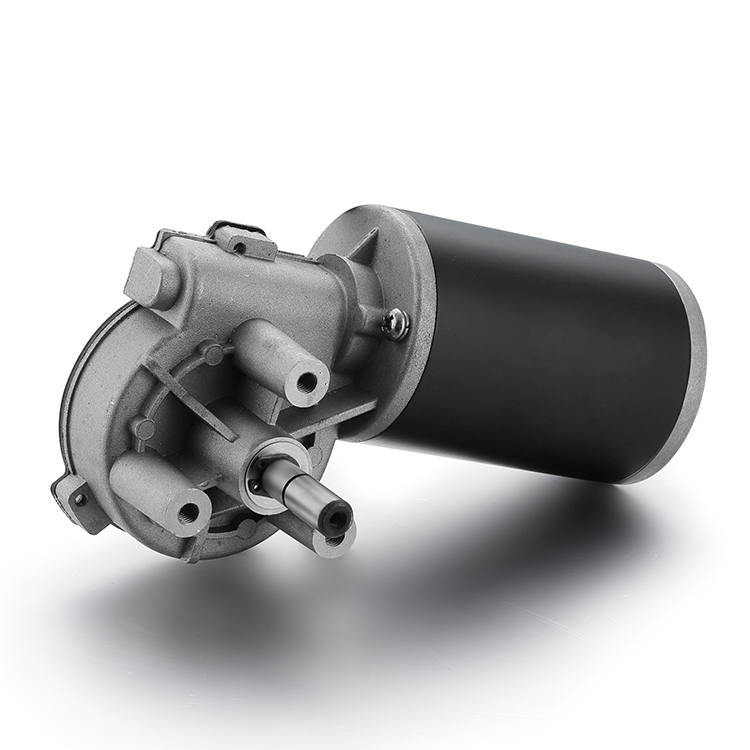

2. 63mm DC brushed worm geared motor (Figure 2)

Range of Power: 52-125W

Range of Voltage:12-110VDC

Range of Rated Speed: 50-100rpm

Range of Rated Torque: 4.65-9.3N.m

Lifespan: 1200Hours

The reduction ratio ranges from 1:30 to 1:60, and the torque range that can be carried is large

It is especially suitable for car wipers, seats and other scenarios

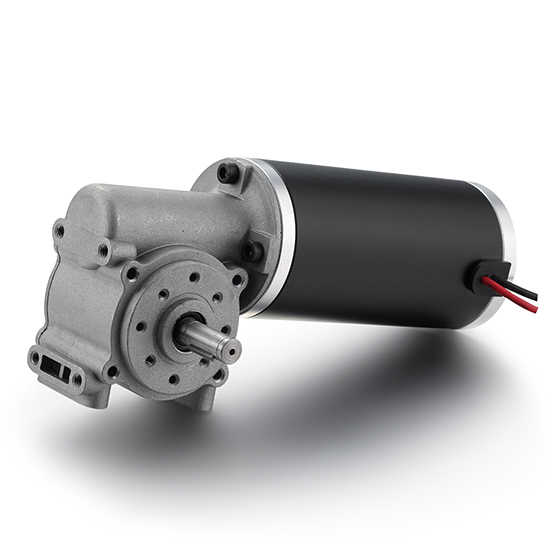

3. 63mm DC brushed worm geared motor (Figure 3)

Range of Power: 52-125W

Range of Voltage:12-110VDC

Range of Rated Speed: 100-300rpm

Range of Rated Torque: 0.75-2.25N.m

Lifespan: 1200Hours

The reduction ratio ranges from 1:10 to 1:30, and the torque range is between 1N.m-3N.m

It is especially suitable for shopping mall automatic doors and revolving door application scenarios

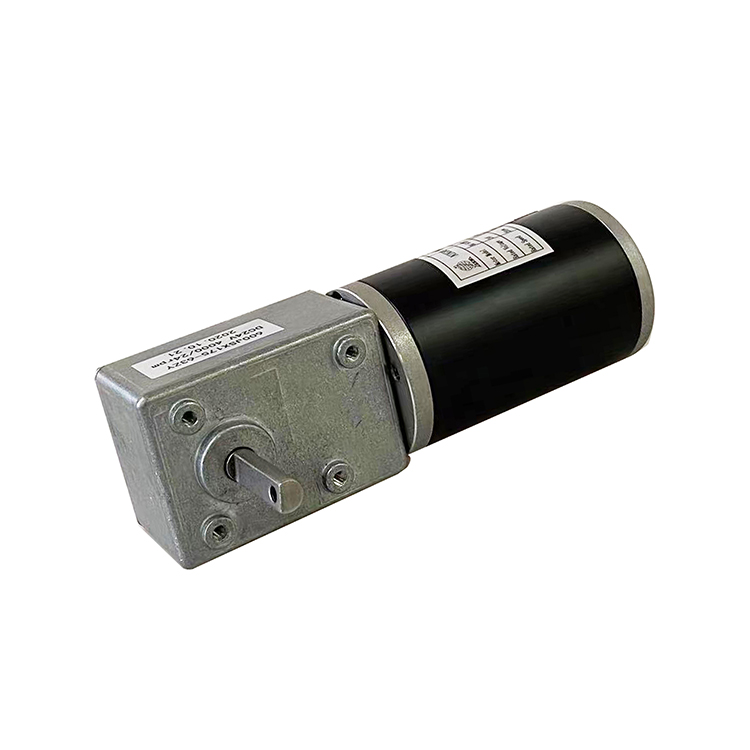

4. 63mm geared motor (Figure 4)

Range of Power: 3-13.5W

Range of Voltage:12-24VDC

Range of Rated Speed: 2000-6000rpm

Range of Rated Torque: 0.01-0.03N.m

Lifespan: 800Hours

The reduction ratio ranges from 1:16 to 1:326, and the rated torque is from 1.65N.m to 20N.m, which can achieve the highest deceleration under the same size.

It is suitable for power tools, robot automation equipment, etc

To sum up, most of the power and voltage of the 63mm DC motor are the same, but with different reduction boxes, it will have different reduction ratios and torque ranges, and the styling design of each motor is also to better match the equipment, but everything must respect the premise of motor data.
