When you design equipment for the US or European market, choosing the correct DC motor voltage is not only a technical issue. It directly affects safety compliance, efficiency, system cost, and long-term reliability.

You need to match:

• Local power grid standards

• Your power supply structure

• Application load characteristics

• Safety certification requirements

Below is a practical DC motor voltage selection guide for the US and European markets.

1. Understand US and European Power Standards

United States

• Residential voltage: 110V–120V AC / 60Hz

• Industrial voltage: 220V–240V AC / 60Hz

Most DC systems convert AC to DC through power supplies.

Common DC bus voltages:

• 12V DC

• 24V DC

• 48V DC

• 90V DC

• 180V DC (after rectified 120V AC)

Europe (Germany, Italy, France, etc.)

• Residential voltage: 220V–240V AC / 50Hz

• Industrial voltage: 380V–400V AC / 50Hz

Common DC voltages after rectification:

• 24V DC

• 48V DC

• 110V DC

• 310V DC (after rectified 220V AC)




2. DC Motor Voltage Selection by Application

1) 12V / 24V DC Motors

Best for low-power and battery-powered equipment.

Typical applications:

• Smart cleaning robots

• Small AGV trolley systems

• Automatic doors

• Medical small devices

Why choose 12V or 24V?

• Safe voltage range

• Easy battery integration

• Lower insulation requirements

• Simple certification

For US and EU markets, 24V DC is the most popular industrial low-voltage standard.

If your equipment requires mobility, lithium battery systems, or low-risk operation, 24V is usually the safest choice.

2) 48V DC Motors

Best balance between safety and high power.

Typical applications:

• AGV robots

• Intelligent logistics systems

• Electric lifting equipment

• Medium-power cleaning machines

Why choose 48V?

• Lower current than 24V at same power

• Reduced copper loss

• Higher efficiency

• Still within safe extra-low voltage range in many standards

For engineers who need high torque but want to avoid high-voltage certification complexity, 48V is a very good solution.

3) 90V / 110V DC Motors

Used when powered directly from AC rectification.

Common in:

• Industrial equipment in US

• Conveyor systems

• Industrial fans

• Medium-power automation systems

Advantages:

• Smaller current

• Higher efficiency under load

• Suitable for continuous duty

But:

• Higher insulation requirement

• More strict safety compliance

If your equipment connects directly to 120V AC in the US, 90V or 110V DC systems can reduce power conversion complexity.

4) 180V / 310V DC Motors

For high-power industrial equipment.

Common in:

• Industrial vacuum systems

• Heavy-duty automation

• Large intelligent cleaning systems

• Industrial pumps

In Europe, 220V AC rectified becomes about 310V DC.

Advantages:

• Very low current

• High efficiency at high power

• Smaller cable size

Challenges:

• High insulation grade required

• Strict EMC compliance

• Higher safety risk

This voltage level is recommended only when power demand is high and equipment is stationary.

3. Key Engineering Factors You Must Evaluate

1) Current vs Voltage Trade-off

Power = Voltage × Current

If voltage is low:

• Current increases

• Copper loss increases

• Heat increases

If voltage is high:

• Insulation cost increases

• Safety requirements increase

You must balance thermal design and certification cost.

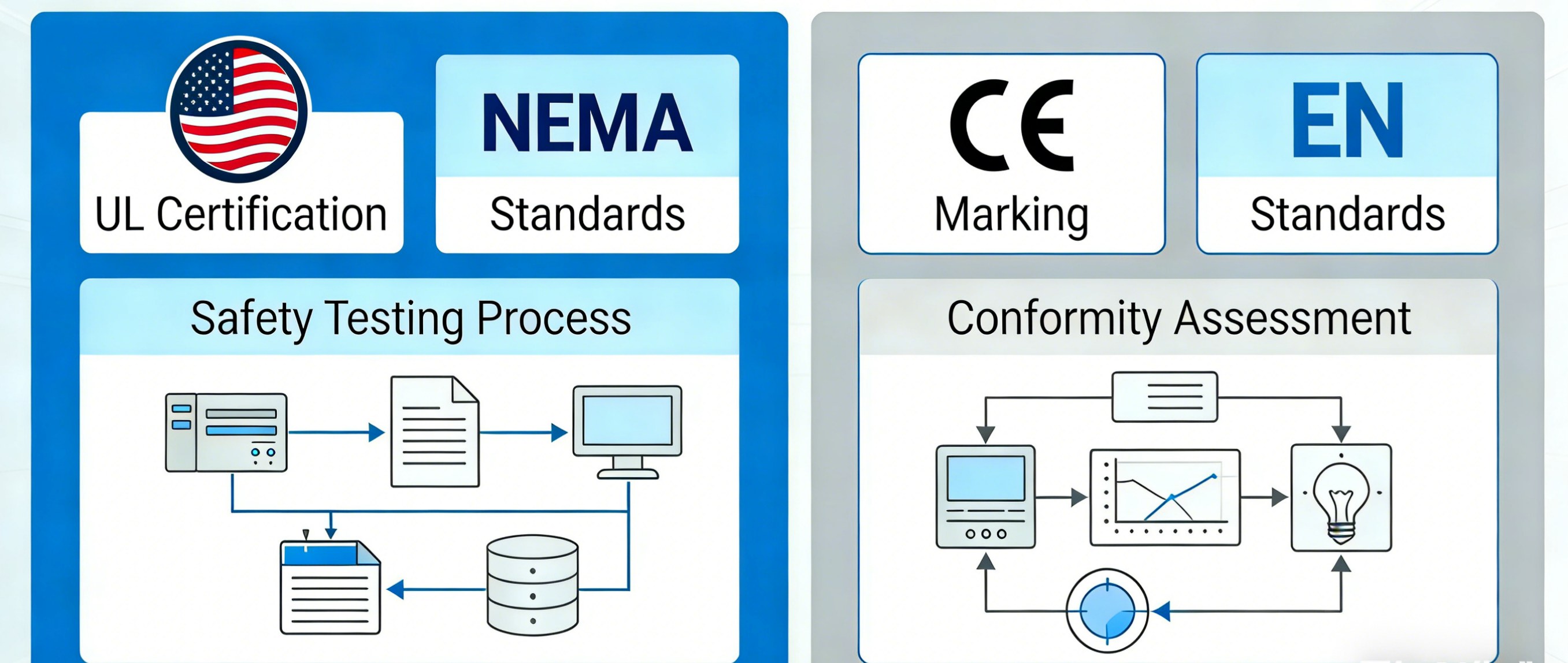

2) Safety and Certification (US & EU)

For US market:

• UL compliance

• EMC standards

For EU market:

• CE

• RoHS

Lower DC voltage systems are easier to pass safety testing.

If your product targets household users, low-voltage DC is strongly recommended.

3) Application Environment

Ask yourself:

• Is it battery-powered? → 24V / 48V

• Is it continuous industrial operation? → 90V / 180V / 310V

• Is it mobile equipment? → 24V / 48V

• Is it high-power stationary equipment? → 180V / 310V

4. Practical Selection Strategy

For most smart equipment exported to US and Europe:

5. Common Mistakes to Avoid

1. Choosing too low voltage for high-power system → overheating

2. Choosing too high voltage for small equipment → unnecessary certification cost

3. Ignoring power supply compatibility in target market

4. Not considering long-term thermal performance

6. How BG Motor Supports Your Voltage Selection

At BG Motor, we provide customized DC motor voltage solutions:

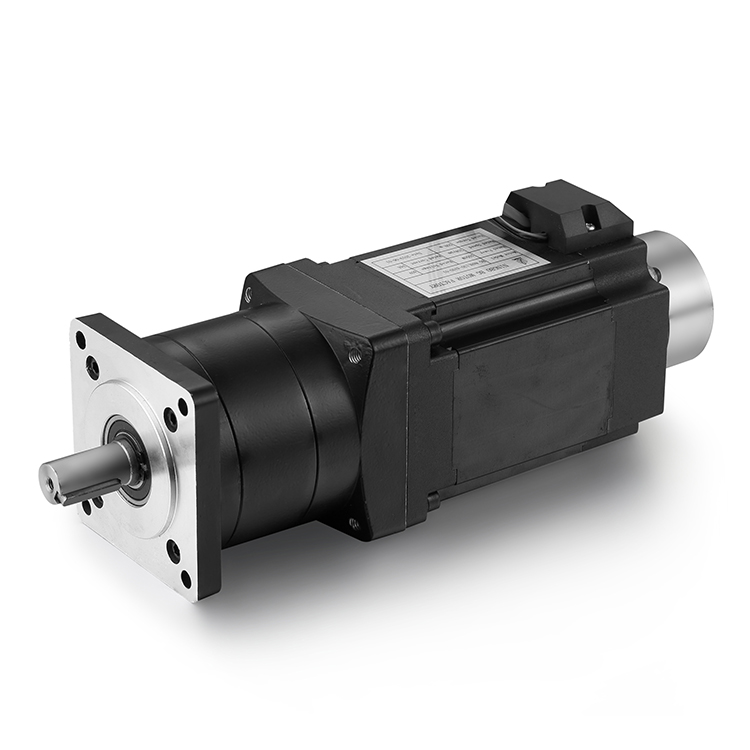

Brushless DC Motor:

• DC6V–310V

• 5W–20KW

• Speed up to 100,000 RPM

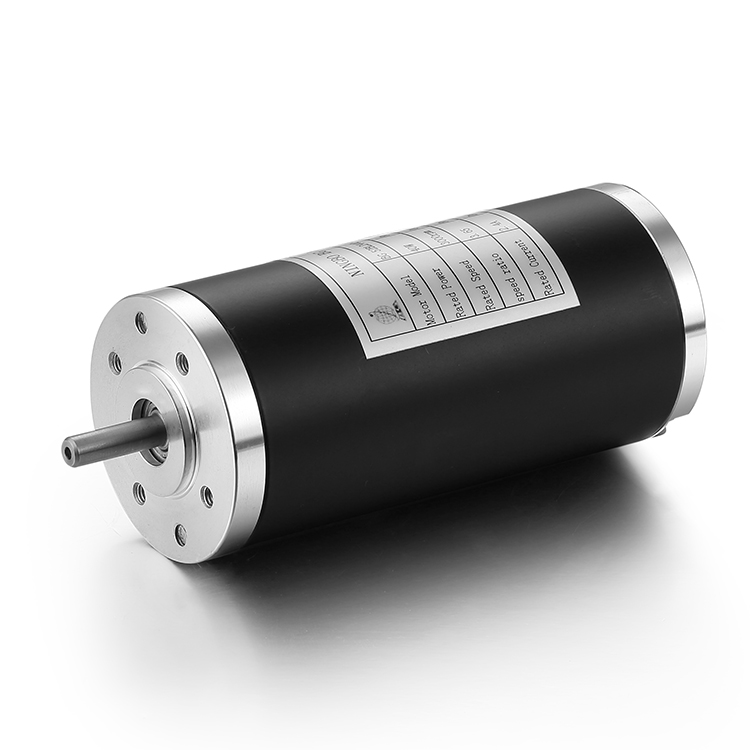

DC Brushed Motor:

• DC3V–220V

• 1W–1000W

We help you:

• Calculate load torque

• Match voltage to real application

• Optimize efficiency

• Control noise ≤ 40dB

• Ensure long service life

• Meet CE, ROHS, CCC certification

If you are developing equipment for US or European markets, you can share:

• Input power source

• Rated load torque

• Working duty cycle

• Size limitation

• Target market

Our engineers will recommend the most suitable DC voltage solution for your product.
