Food Mixer | Flour Mill | Food Grinder

In kitchen equipment, different applications require different motor solutions.
High viscosity. High dust. Fine grinding. Long working time.

BG Motor provides targeted motor matching solutions.

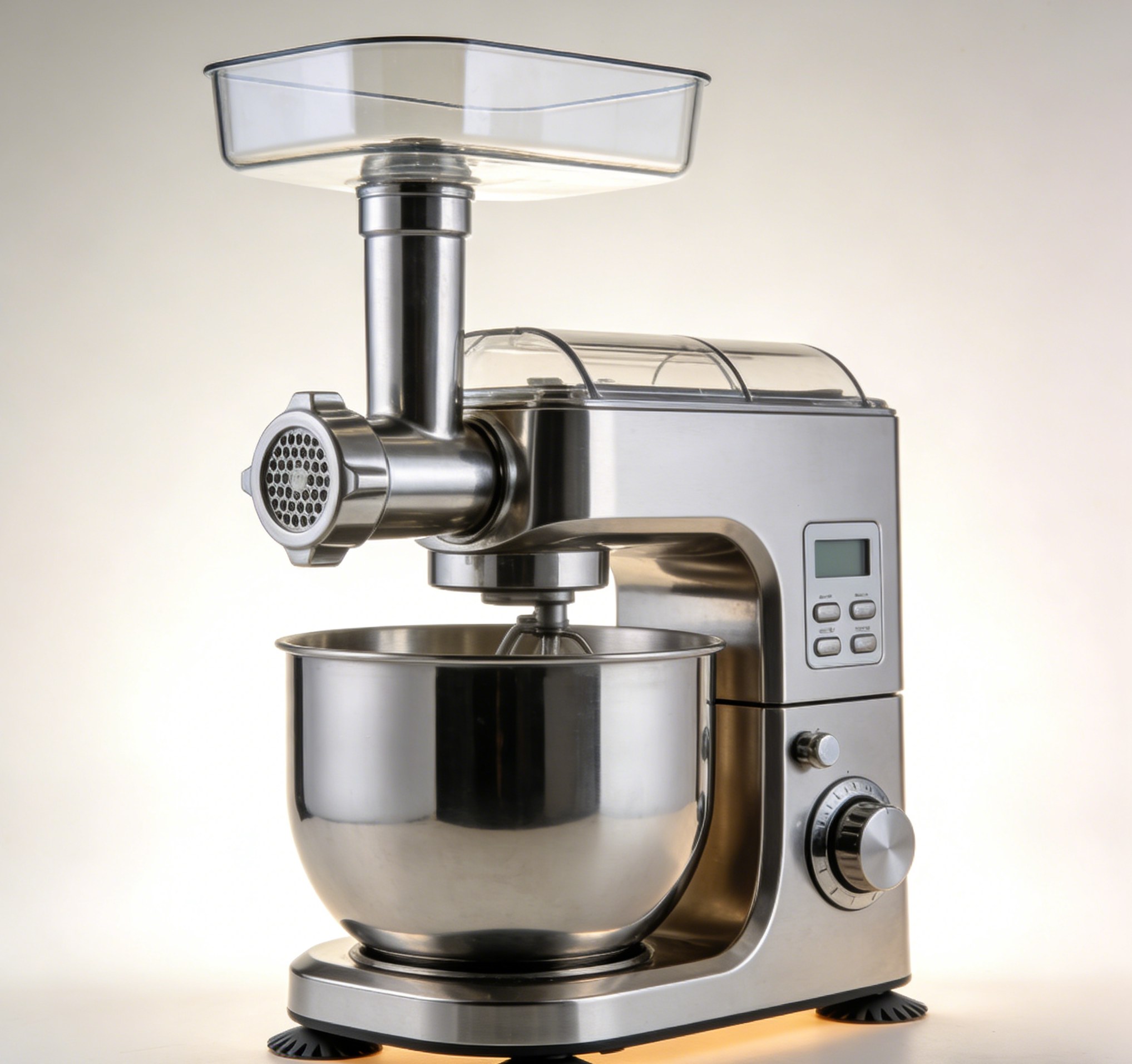

1.Food Mixer (High Viscosity Materials)

Application Characteristics

Dough mixing

• Thick sauce mixing

• High viscosity load

• Large starting torque

• Frequent start-stop

Technical Difficulties

• Large starting impact current

• Motor overheating

• Short service life

• Gear damage under heavy load

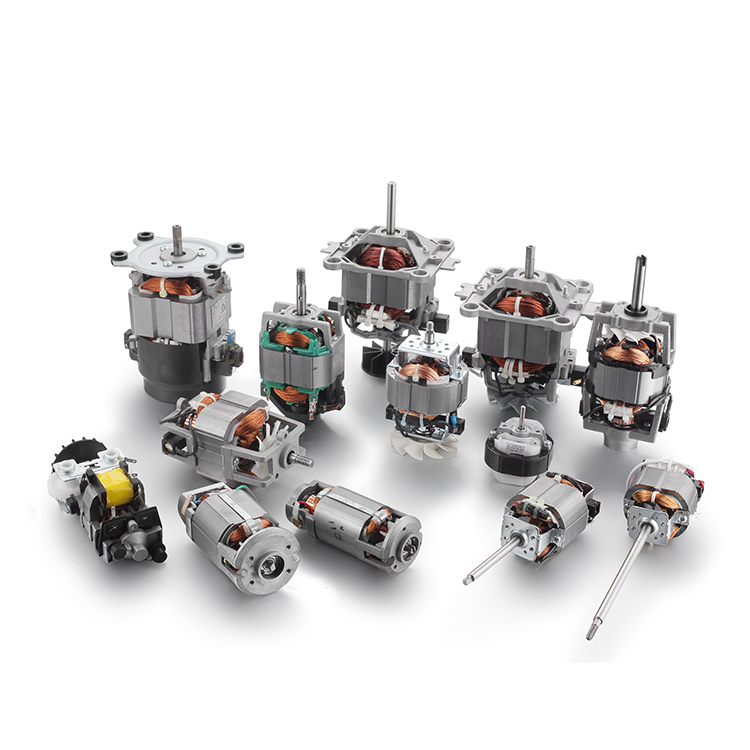

Recommended Motor:Single-phase Series Motor (Universal Motor) or High-power Brushless Motor

Technical Data (Typical Range)

• Power: 300W–1500W

• Voltage: AC110–220V

• Speed: 5,000–20,000 RPM

• Starting Torque: High torque design

• Insulation Class: F

• Temperature Rise: ≤75K

Solution Advantages

✔ High starting torque for dough mixing
✔ Soft-start control reduces impact
✔ Optimized cooling structure
✔ Food-grade shaft coating
✔ Long continuous working life

Result:Strong torque. Stable mixing. No overload burning. Longer service life.

2.Mill Machine (High Dust Environment)

Application Characteristics

• Continuous grain milling

• High dust environment

• Long operating time

• Risk of powder entering motor

Technical Difficulties

• Dust intrusion

• Bearing wear

• Motor overheating

• Food safety contamination risk

Recommended Motor:Brushless DC Motor (BLDC Motor)

Technical Data (Typical Range)

• Power: 400W–1200W

• Voltage: 24V / 48V / AC220V

• Speed: 3,000–15,000 RPM

• Efficiency: ≥85%

• Protection Level: Up to IP55

• Noise: ≤40dB

Solution Advantages

✔ Sealed structure for dust resistance
✔ No carbon brush → no carbon powder pollution
✔ Lower temperature rise
✔ Longer lifetime
✔ Stable speed control

Result:Dust-proof. Long life. Clean operation. Stable milling performance.

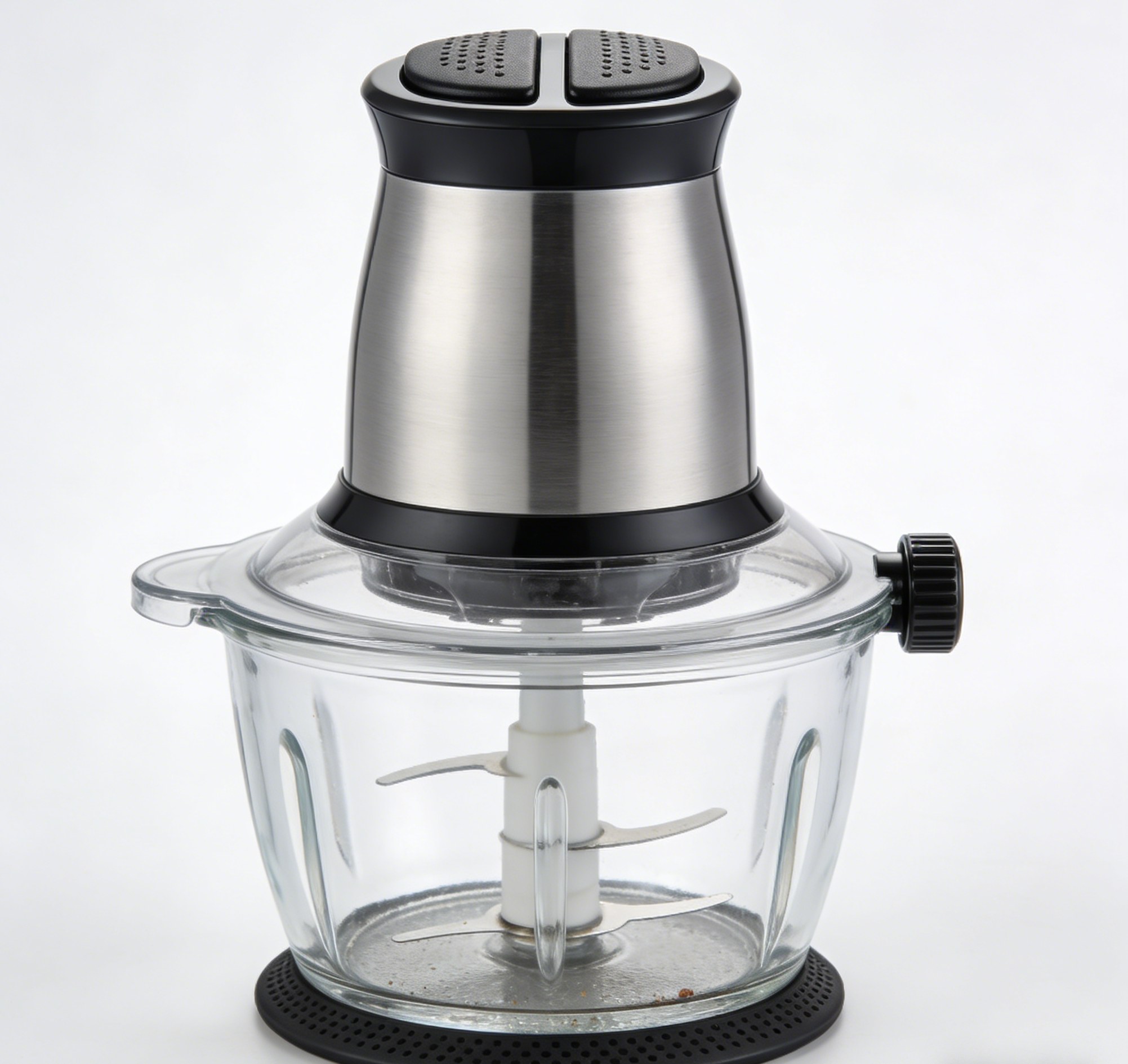

3.Food Grinder (Fine Grinding Requirement)

Application Characteristics

• Coffee grinding

• Spice grinding

• Fine powder processing

• High precision speed control

• Low vibration requirement

Technical Difficulties

• Uneven particle size

• Vibration affecting grinding precision

• Gear wear

• Noise control

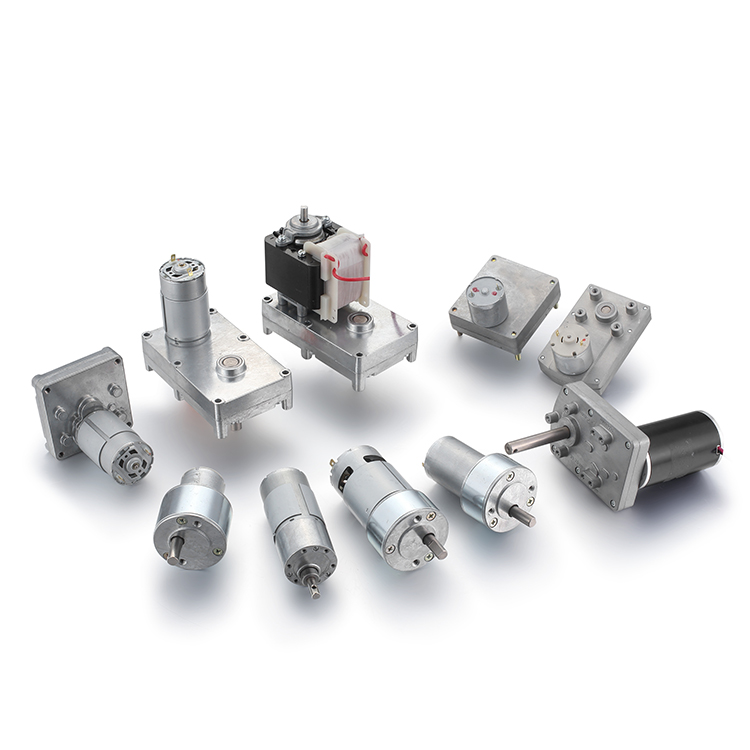

Recommended Motor：DC Motor + Planetary Gearbox Combination

Technical Data (Typical Range)

• Motor Power: 50W–500W

• Voltage: DC12V–48V

• Output Speed (after gearbox): 50–500 RPM

• Torque Output: High torque low speed

• Gear Material: Hardened steel

• Vibration: ≤6.1mm/s²

Solution Advantages

✔ Precise speed reduction
✔ Stable low-speed high torque output
✔ Fine particle control
✔ Low vibration
✔ Low noise

Result:Uniform grinding. Stable output. Fine powder control.

Final Matching Summary

BG Motor provides:

✔ Customized motor solution

✔ Torque calculation support
✔ Performance test report
✔ Low noise design
✔ Long-life motor
✔ Integrated gearbox solution

If customers are developing food mixer, flour mill, or grinder equipment,
BG Motor can provide the most suitable, high-performance motor solution.

BG Motor – High torque. Low vibration. Long life. Food-safe.
