High speed electric motor: High-Speed DC and AC Motor Solutions

When your equipment needs high rotational speed, fast response, compact size, or high power density, a high speed electric motor can give you a more suitable solution than a standard motor.

But high speed is not simply about increasing RPM. As motor speed increases, rotor balance, bearing performance, heat dissipation, vibration, noise, and motor control become more demanding. You therefore need a motor manufacturer that can control both the electrical and mechanical performance of the motor.

BG Motor provides high-speed DC and AC motor solutions, with customized designs for different equipment and operating conditions.

BG Motor High Speed Electric Motor Solutions

BG Motor offers several high-speed motor options, with brushless DC motors and AC motors as the main solutions.

The brushless DC motor range provides a particularly wide speed range, while AC motors are suitable when your equipment uses an AC power supply and requires high-speed operation.

These are BG Motor's stated customization ranges, while the final motor specification depends on your application, load, installation space, and operating conditions.

Voltage, Power and Current Need to Match Your Application

When you select a high-speed motor, voltage, power, and current should be considered together with speed and torque.

For example, if you require a 24V motor, the manufacturer still needs to know the required power, operating speed, load torque, and working cycle before determining the appropriate motor design. Current is also affected by the motor's efficiency, load, speed, and winding configuration, so there is no single current value for an entire motor series.

For this reason, providing voltage + power + speed + torque + working conditions gives the motor manufacturer a much better basis for developing the right solution.

High Speed Motor Specifications and Characteristics

A high-speed motor needs to maintain stable performance while rotating at a much higher speed than a conventional motor. The motor's rotor, bearing system, winding, cooling structure, shaft, and overall mechanical balance all need to be considered during development.

For your equipment, the most important specifications normally include speed, power, torque, voltage, motor size, shaft structure, noise, vibration, and cooling.

A high-speed motor with a very high maximum RPM is not necessarily the best motor for your equipment. If your machine requires high torque at a specific operating speed, the motor needs to be designed around that actual working point.

High Speed Electric Motor Applications

High-speed motors are used when fast rotation directly affects the performance, productivity, or response of your equipment. For applications such as winding, cutting, sewing, and alarm systems, the motor needs to maintain high rotational speed while also providing stable operation, suitable torque, and reliable service life.

BG Motor has been working with these types of applications for decades. As early as 1990, BG Motor focused on sewing machine motors and centrifuge motors as important product directions and began developing and manufacturing motors for these applications. This early experience gave BG Motor a practical understanding of the requirements of high-speed equipment, including stable rotation, compact motor structures, speed control, and continuous operation.

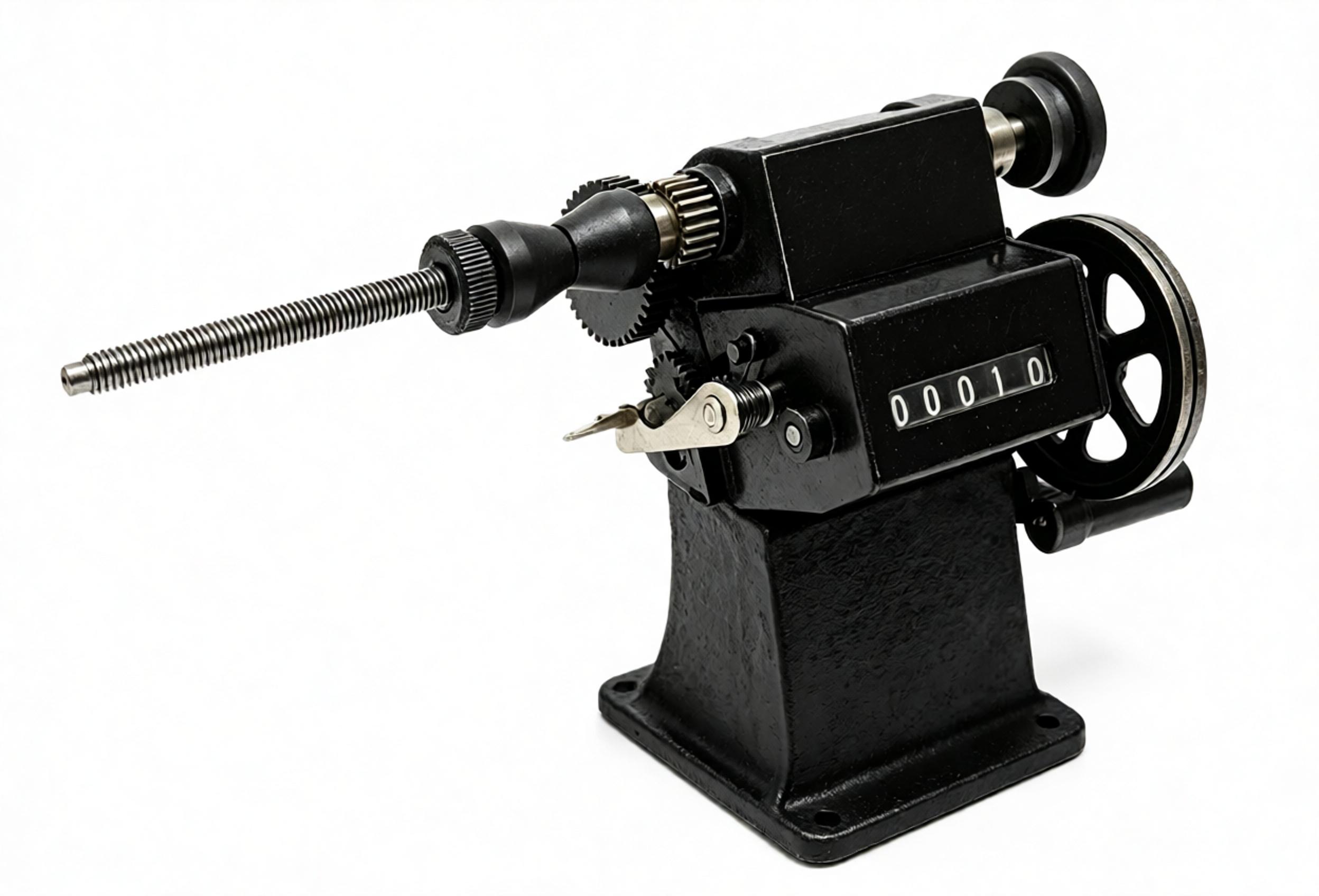

• Winding Machines

A winding machine often needs high-speed and stable rotation to improve production efficiency while maintaining consistent winding quality. The motor must respond quickly to changes in load and maintain stable speed during continuous operation.

For your winding equipment, BG Motor can develop the motor according to the required speed, torque, shaft structure, installation dimensions, and working cycle rather than simply providing a standard high-speed motor.

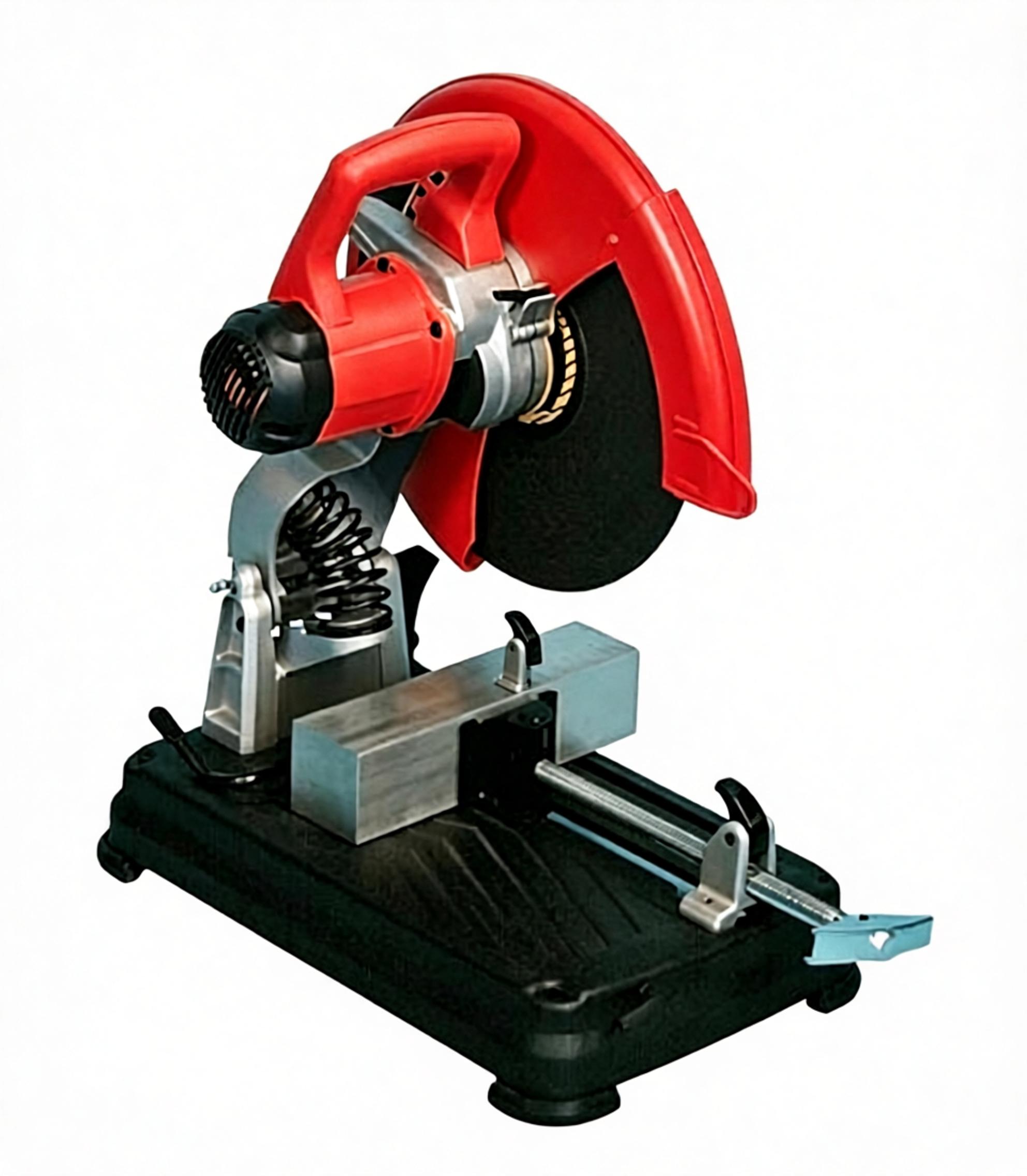

• Cutting Machines

Cutting machines require the motor to deliver fast and stable rotation to blades, cutting heads, or other rotating components. At the same time, the motor needs to maintain sufficient torque at the required operating speed.

In 2024, BG Motor provided a customized cutting machine motor solution for a Canadian customer. The project required BG Motor to consider the customer's actual equipment structure and operating requirements, demonstrating the company's ability to develop high-speed motor solutions for overseas industrial equipment manufacturers.

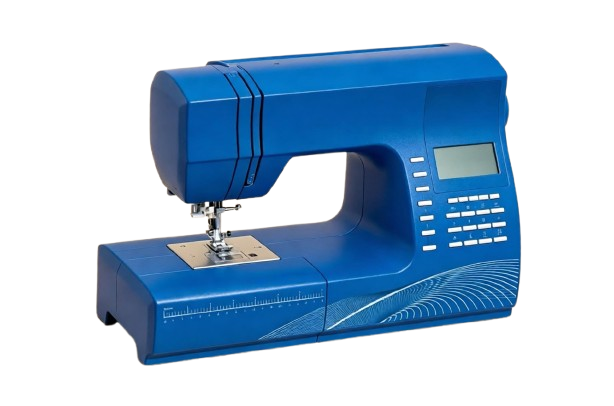

• Sewing Machines

Sewing machines have been one of BG Motor's long-term application areas. Since the early stage of its motor manufacturing development, BG Motor has focused on sewing machine motors and accumulated experience in high-speed rotation and stable operation.

For sewing equipment, simply increasing RPM is not enough. The motor also needs to provide fast response, appropriate torque, low vibration, and stable speed control because these factors directly influence the movement and consistency of the sewing mechanism.

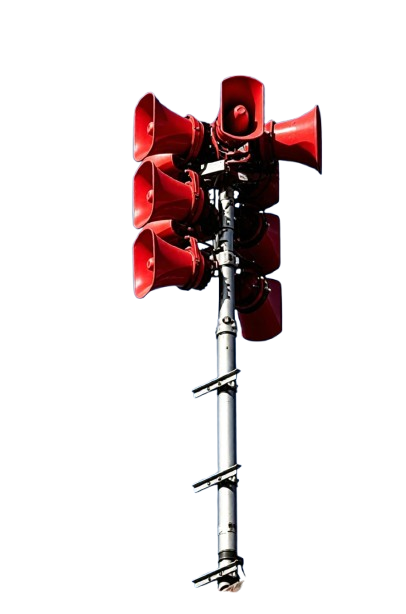

• Alarm Sirens

In 2024, BG Motor developed and supplied a high-speed alarm siren motor exceeding 20,000 RPM for a customer in Turkey. This project demonstrates BG Motor's ability to develop motors for applications where very high rotational speed is a core requirement.

• Centrifuge Equipment

Centrifuge equipment is another important application in BG Motor's history. Since 1990, BG Motor has regarded centrifuge motors as one of its key development directions.

Centrifuge applications place strict requirements on rotational stability, vibration, speed, and mechanical reliability. Long-term experience in this area has helped BG Motor build practical knowledge for developing motors that operate reliably at high speed.

More High-Speed Applications

Today, BG Motor's high-speed motor solutions can also be used in:

• High-speed vacuum cleaners
• Pumps
• Compressors
• Industrial fans
• Spindle equipment
• Medical equipment
• Laboratory equipment
• Textile equipment
• Automation equipment
• Robot equipment

Whether you need a motor for a new machine or are replacing an existing motor that cannot meet your speed or size requirements, BG Motor can evaluate your application and develop a customized solution around your equipment.

Why Choose BG Motor for High-Speed Motors?

A high-speed motor requires much more than a winding that can reach a high RPM.

BG Motor has been manufacturing motors since 1994 and has more than 30 years of production experience. The company has a 12,000 m² production facility, automated production lines, professional R&D engineers, experienced frontline workers, and dedicated motor testing capabilities.

• 30+ Years of Manufacturing Experience

BG Motor has been developing and manufacturing motors for more than three decades. During this period, the company has expanded its production facility, upgraded its manufacturing processes, developed DC motor technologies, and built experience across different motor applications.

This long-term manufacturing experience is important when you need a motor that is not only capable of reaching high speed but can also maintain stable performance during repeated production.

• Strong Engineering Capability

BG Motor has power, structural, and mechanical engineers, with its engineering team including professionals with more than 20 years of motor-industry experience.

The company uses electromagnetic simulation tools including ANSYS, JMAG, Motor-CAD, and EasiMotor to support motor development and performance optimization.

For high-speed applications, this engineering capability allows BG Motor to consider the motor as a complete system rather than focusing only on the RPM.

• Experienced Production Team

High-speed motor manufacturing requires precise production and assembly.

BG Motor has experienced frontline workers who have accompanied the company's development for many years. Their practical manufacturing experience, together with automated production equipment and quality-control processes, provides a strong foundation for customized motor production.

• Integrated Manufacturing and Testing

BG Motor combines R&D, production, customization, and testing within its motor manufacturing operation. The company provides motor test reports and performance curves and states a product pass rate of more than 99.99%.

This gives you a clearer understanding of the motor's actual performance before integrating it into your equipment.

BG Motor High-Speed Motor Customization

A standard high-speed motor may not fit your equipment directly. Your machine may require a special shaft, smaller diameter, different lead-wire position, specific mounting holes, or a particular gearbox.

BG Motor can customize the motor according to your drawings and technical requirements.

The customization can include:

• Voltage and power
• Rated and maximum speed
• Shaft diameter and length
• Shaft shape and machining
• Motor diameter and length
• Mounting holes
• Lead-wire configuration
• Installation direction
• Protection level
• Insulation requirements
• Gearbox
• Brake
• Encoder
• Drive
• Connector

For customized brushless motors, BG Motor states that protection can reach IP68 depending on the design, and the motor can be integrated with gearboxes, brakes, encoders, and drives.

This means you can start from your equipment requirements rather than trying to find a standard motor that happens to fit your machine.

From Your Equipment Requirements to a High-Speed Motor

If you are developing a winding machine, cutting machine, sewing machine, alarm siren, vacuum cleaner, pump, fan, robot, or other high-speed equipment, you can provide BG Motor with the basic information about your application.

The most useful information includes the required voltage, power, operating RPM, torque, available installation space, shaft dimensions, working cycle, noise and vibration requirements, and operating environment.

If you already have a 2D drawing, 3D CAD file, motor sample, or equipment specification, you can send it directly to the engineering team.

BG Motor can then evaluate the application and develop the motor around your actual equipment requirements.

High-Speed Motor Solution from BG Motor

High speed. Customized structure. Professional engineering. Stable production.

With more than 30 years of motor manufacturing experience, a 12,000 m² factory, experienced workers, professional engineers, automated production equipment, and customized motor development capabilities, BG Motor provides high-speed DC and AC motor solutions for OEM equipment manufacturers.
