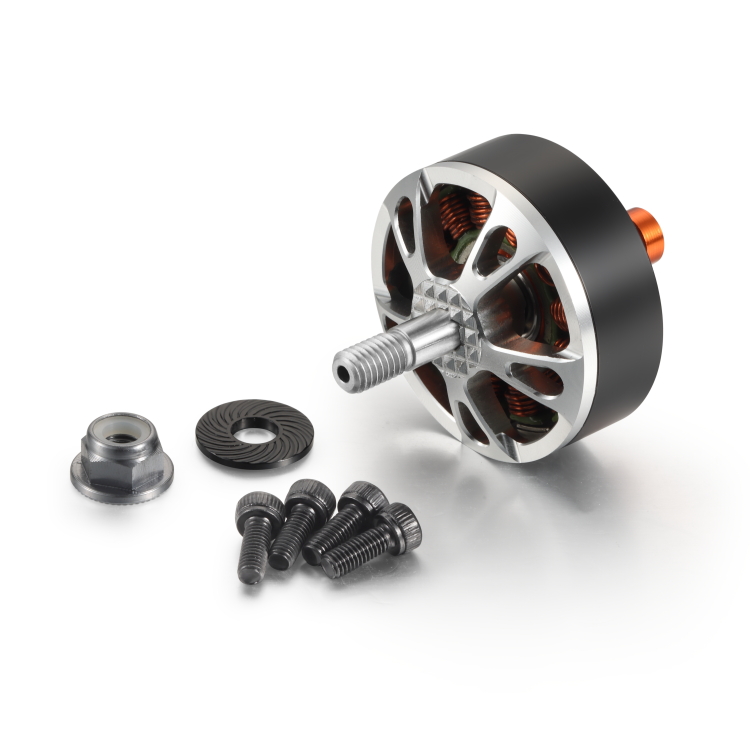

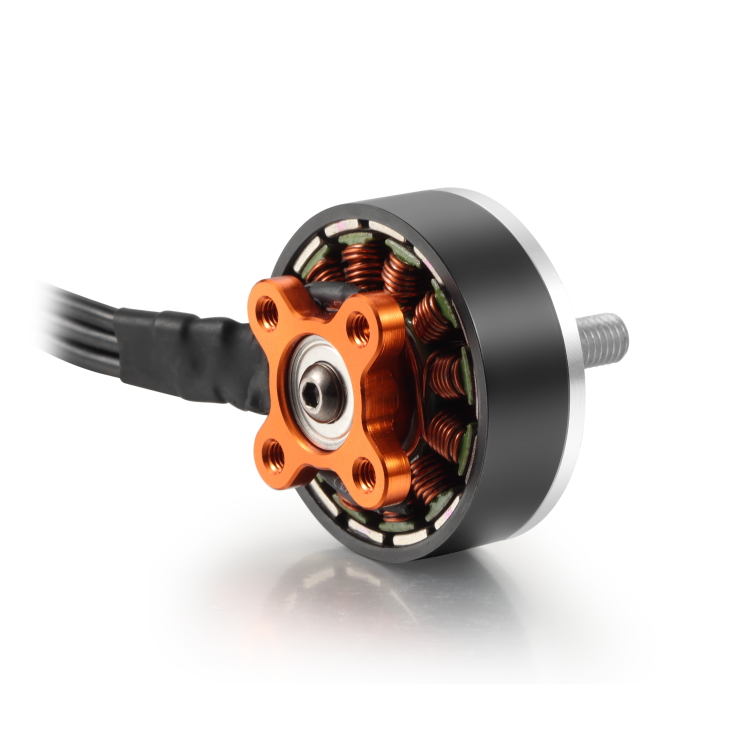

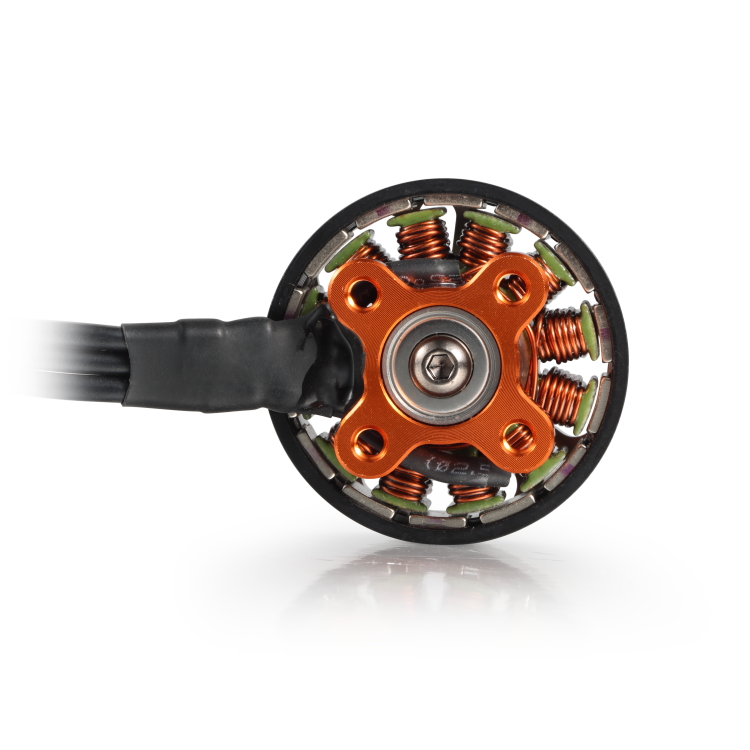

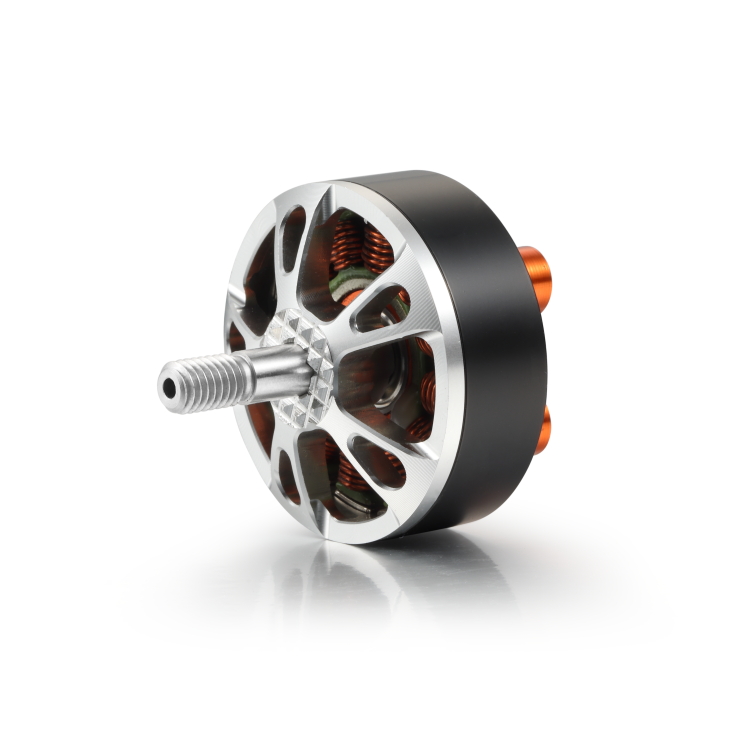

BGS-F2807 1600KV 2KG Payload Brushless FPV Motor for 7inch Racing Drone

Fpv motor

BGS-F2807 1600KV 2KG Payload Brushless FPV Motor for 7inch Racing Drone

TYPE: Fpv motor Get Free Solutions Download PDF

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

Motor dimensions32.8*19mm

Number of slots12N14P

Copper wire grade200℃

Shaft diameterM5

Motor weight49.5g

Service life＞1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Recommended 2807 UAV Motor
Type：2807	Motor Dimension：φ32.94*34.05
Dynamic Balance：≤5mg	Configuration：12N14P
Shaft Diameter：5mm	Lead：18AWG*200mm
Screw Diameter:Φ19-M3-4	Prop Adapter Shaft Thread:M5
Recommended Voltage:1250KV	Max Power:551W
Rated Voltage (LiPo):4~6S	Peak Current:44.32A
Max Thrust:2.17kg	Weight:52.6g
Drone Frame Type:7.5-inch X4 Frame	Propeller:C7.5x4.6x3
Recommended Battery:22.2v	Max. Takeoff Weight:10kg

Advantages

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BGS-F2807	KV	W	A	g	g/W	/	S	A
	1300	826.65	38.20	2210	2.67	7035-3	6	50
	1300	830.85	38.20	2210	2.66	7045-3	6	50
	1500	1090.46	52.30	2460	2.26	7035-3	6	50
	1500	1160.51	55.50	2490	2.15	7040-3	6	50
	1750	751.81	46.90	2160	2.87	7035-3	4	60
	1750	819.64	51.10	2220	2.71	7040-3	4	60

Test Data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor temperature
BGS-F2807 KV1300 (Prop)7035-3	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	22.58	870	0.13	9.80	13610	221.28	3.93	45
	50%	22.51	1071	0.16	13.10	15100	294.88	3.63
	60%	22.43	1295	0.19	17.10	16300	383.55	3.38
	70%	22.30	1560	0.22	22.10	17900	492.83	3.17
	80%	22.11	1871	0.27	29.30	19400	647.82	2.89
	90%	21.90	2163	0.31	36.80	20850	805.92	2.68
	100%	21.64	2210	0.31	38.20	21830	826.65	2.67
BGS-F2807 KV1300 (Prop)7035-3	40%	22.78	870	0.14	9.80	13090	223.24	3.90	45
	50%	22.63	1071	0.17	13.10	14450	296.45	3.61
	60%	22.53	1295	0.20	17.10	15900	385.26	3.36
	70%	22.13	1560	0.23	22.10	17320	489.07	3.19
	80%	22.16	1871	0.28	29.30	18630	649.29	2.88
	90%	21.98	2163	0.33	36.80	19750	808.86	2.67
	100%	21.75	2210	0.34	38.20	19985	830.85	2.66
BGS-F2807 KV1300 (Prop)7045-3	50%	21.53	335	0.06	2.60	8120	55.98	5.98	50
	60%	21.36	563	0.08	5.10	10530	108.94	5.17
	70%	21.25	745	0.12	8.10	11900	172.13	4.33
	80%	21.11	982	0.15	11.60	13500	244.88	4.01
	90%	21.03	1190	0.19	16.20	14700	340.69	3.49
	100%	20.85	2460	0.39	52.30	22530	1090.46	2.26
BGS-F2807 KV1500 (Prop)7035-3	50%	21.58	355	0.06	2.80	8075	60.42	5.88	50
	60%	21.38	567	0.10	5.40	9835	115.45	4.91
	70%	21.30	762	0.13	8.50	11560	181.05	4.21
	80%	21.15	993	0.16	11.90	12780	251.69	3.95
	90%	21.01	1210	0.20	16.60	14300	348.77	3.47
	100%	20.91	2490	0.43	55.50	21830	1160.51	2.15
BGS-F2807 KV1750 (Prop)7035-3	50%	16.79	330	0.05	3.20	8120	53.73	6.14	58
	60%	16.62	562	0.07	5.20	10520	86.42	6.50
	70%	16.43	772	0.12	9.80	11200	161.01	4.79
	80%	16.23	925	0.14	14.30	13150	232.09	3.99
	90%	16.11	1150	0.18	19.50	14450	314.15	3.66
	100%	16.03	2160	0.29	46.90	21230	751.81	2.87
BGS-F2807 KV1750 (Prop)7040-3	50%	16.78	341	0.06	3.40	8060	57.05	5.98	58
	60%	16.66	573	0.09	6.40	9855	106.62	5.37
	70%	16.45	785	0.12	10.30	11660	169.44	4.63
	80%	16.25	945	0.16	15.20	12850	247.00	3.83
	90%	16.16	1170	0.19	20.90	14135	337.74	3.46
	100%	16.04	2220	0.32	51.10	20855	819.64	2.71

Drawing

Customizable Solutions

Parts


Compatible UAV Platforms

1.7-inch FPV Freestyle & Racing Drones


The 2807 motor's combination of high thrust and fast response makes it the go-to choice for aggressive freestyle maneuvers and competitive racing on 7-inch frames.

2.Long-Range FPV Cruisers
With efficiency-focused KV options (1250-1300KV), the 2807 motor delivers extended flight times for long-distance exploration and mountain surfing.

3.Heavy-Lift Cinematic Rigs
Capable of handling 1.2-2kg payloads with appropriate configuration, this motor supports professional cinematography setups carrying action cameras or lightweight mirrorless systems.

4.Fixed-Wing UAVs
The 2807 motor is also widely used in high-performance fixed-wing RC aircraft, offering 2081g+ thrust for agile flying .

5.Lightweight Industrial Applications
For mapping, surveying, or inspection tasks requiring a compact, efficient power system, the 2807 provides reliable performance in a small package.

Key Features

1.Compact & Lightweight Design
Weighing between 52.6g and 59g depending on the variant, the 2807 motor features a compact form factor (approximately φ33.6×20mm) that seamlessly integrates into smaller drone builds without compromising structural integrity .

2.High-Torque 12N14P Configuration
The 12-slot 14-pole architecture provides smooth throttle response and high torque output, making it ideal for driving 6-7 inch propellers with exceptional efficiency across the entire throttle range .

3.Precision Dynamic Balancing
Each rotor undergoes ≤5mg dynamic balancing to virtually eliminate high-frequency vibration, ensuring stable flight and clean video footage from onboard cameras .

4.Superior Heat Dissipation
The rotor's self-cooling structure and high-quality materials (CNC 6061-T6 aluminum bell, high-temperature resistant copper windings) ensure reliable performance even under continuous high-load conditions .

5.Durable Construction

-Precision-balanced rotor – ultra-smooth operation

-High-strength magnets (52H or N52SH grade) – enhanced torque output

-Premium bearings (imported NSK/NMB) – extended lifespan

-220°C-rated windings – thermal endurance for demanding flights
