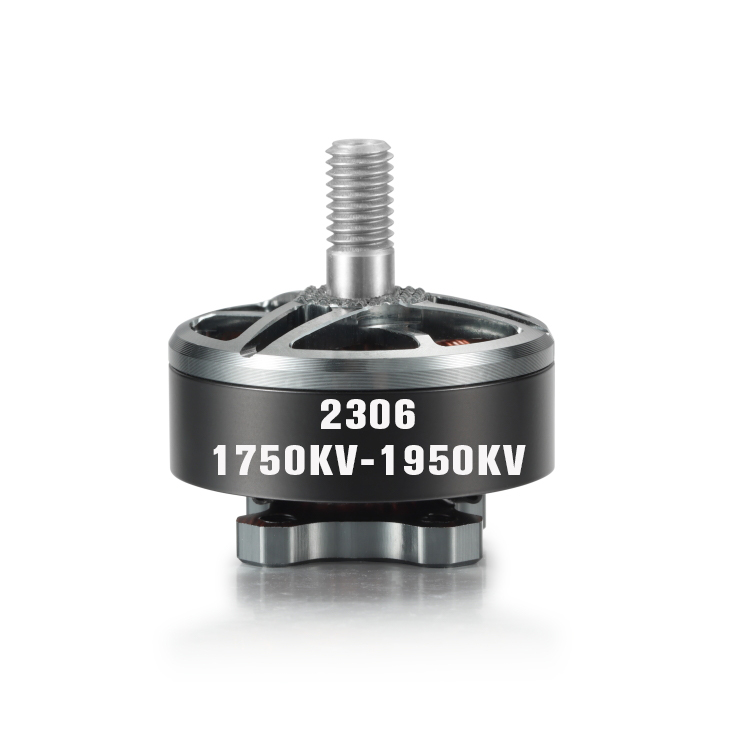

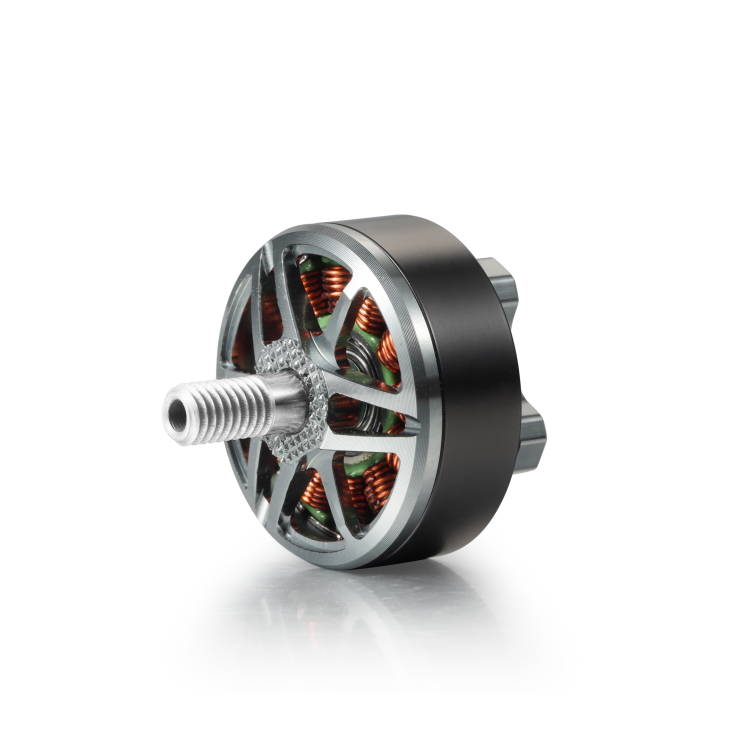

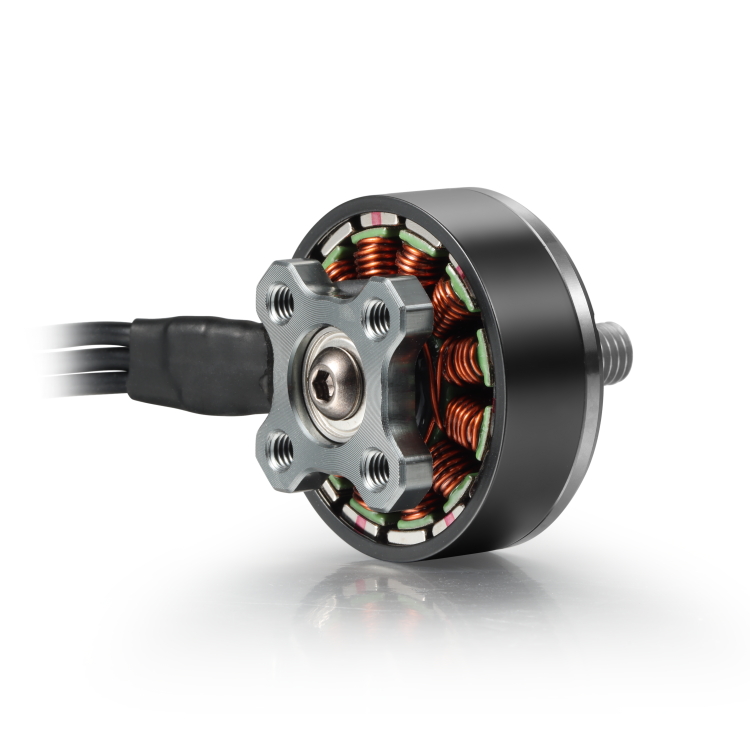

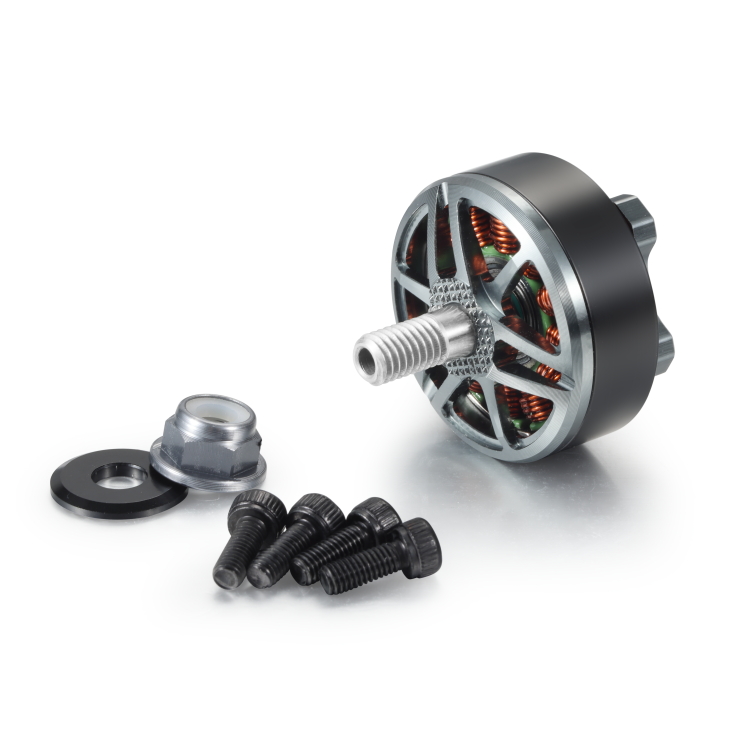

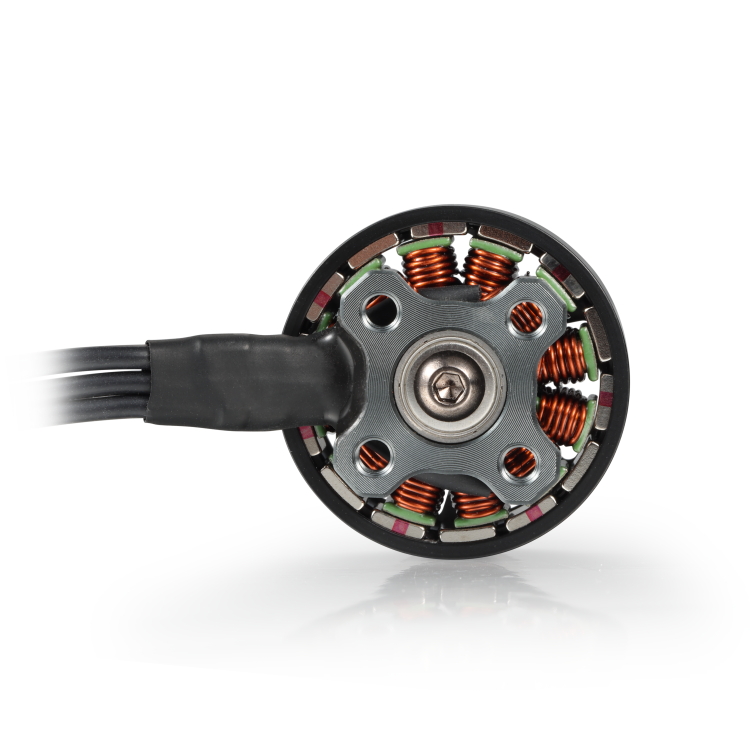

BG-F2306 1750KV 1950KV High-speed FPV motor for 5inch FPV

Fpv motor

BG-F2306 1750KV 1950KV High-speed FPV motor for 5inch FPV

TYPE: Fpv motor Get Free Solutions Download PDF

The 2306.5 outrunner motor is engineered for high-performance FPV drone platforms, offering an optimal balance between torque, responsiveness, and efficiency, which makes it particularly suitable for demanding freestyle flying, competitive racing, and cinematic applications that require both power and precision.

Motor dimensions28.8*17.5mm

Number of slots9N12P

Copper wire grade200℃

Shaft diameter5mm

Motor weight36.5g

Service life＞1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Model	KV Value	Maximum Power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BG-F2306.5	KV	W	A	g	g/W	/	S	A
	1400	827	35	1741	2.1	GF7056	3-6S	35
	1900	1190	51	1961	1.03	GF6042	3-6S	50
	2300	687.5	42.9	1472	2.14	HQ6045	2-4S	50
	2550	757.4	47.3	1718	2.26	HQ6045	2-4S	50

Advantages

Basic Data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor temperature
BGS-F2306.5 KV1900	%	V	g	N.m	A	rpm	W	g/W	℃
	50%	23.67	749	0.09	9.60	19750	227.23	3.30	/
	60%	23.39	1010	0.13	15.40	22554	360.21	2.80
	70%	23.19	1245	0.16	21.60	25248	500.90	2.49
	80%	22.82	1455	0.19	28.50	27369	650.37	2.24
	90%	22.37	1605	0.22	36.10	29270	807.56	1.99
	100%	21.94	1788	0.26	44.10	30750	967.55	1.85
BGS-F2306.5 KV1750	50%	23.75	630	0.07	6.60	18255	156.75	4.02	/
	60%	23.55	845	0.10	11.10	21152	261.41	3.23
	70%	23.32	1085	0.13	16.40	23953	382.45	2.84
	80%	23.11	1315	0.16	22.70	26120	524.60	2.51
	90%	22.75	1524	0.19	29.10	28045	662.03	2.30
	100%	22.34	1635	0.22	36.10	29445	806.47	2.03

Test Data

Drawing

Customizable Solutions

Parts

Applications


Application Scenarios：

1.High-Performance FPV Freestyle Drones

The 2306.5 motor is widely used in 5-inch freestyle FPV drones, where pilots require strong torque, precise throttle control, and consistent power delivery to execute complex aerial maneuvers with confidence and stability.

Strong mid-throttle control
Smooth yet powerful output
Reliable recovery performance

2.FPV Racing Drones

In racing applications, the 2306.5 motor delivers high top-end speed while maintaining control precision, enabling pilots to navigate tight courses and rapid turns with improved responsiveness.

3.Cinematic FPV Platforms

For cinematic drones carrying HD cameras, the 2306.5 motor offers smooth thrust output and reduced vibration, ensuring stable footage even during aggressive flight movements.

4.Heavy 5-Inch Drone Builds

For heavier drone configurations equipped with additional payloads, the 2306.5 motor provides sufficient torque and thrust to maintain stable flight performance.

Performance Characteristics:

1.High Torque Output

The increased stator diameter allows the motor to generate higher torque, enabling efficient operation with higher pitch propellers and heavier loads.

2.Balanced Responsiveness

The 6.5 mm stator height ensures that the motor maintains fast throttle response while delivering smooth power output

3.Efficient Power Delivery

The motor operates efficiently across a wide throttle range, making it suitable for both aggressive flying and cruising scenarios.
