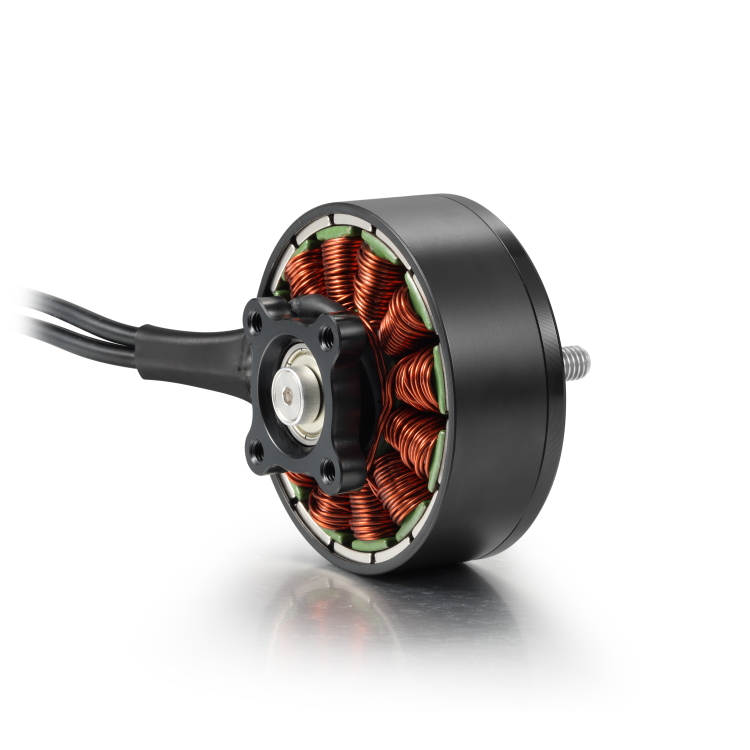

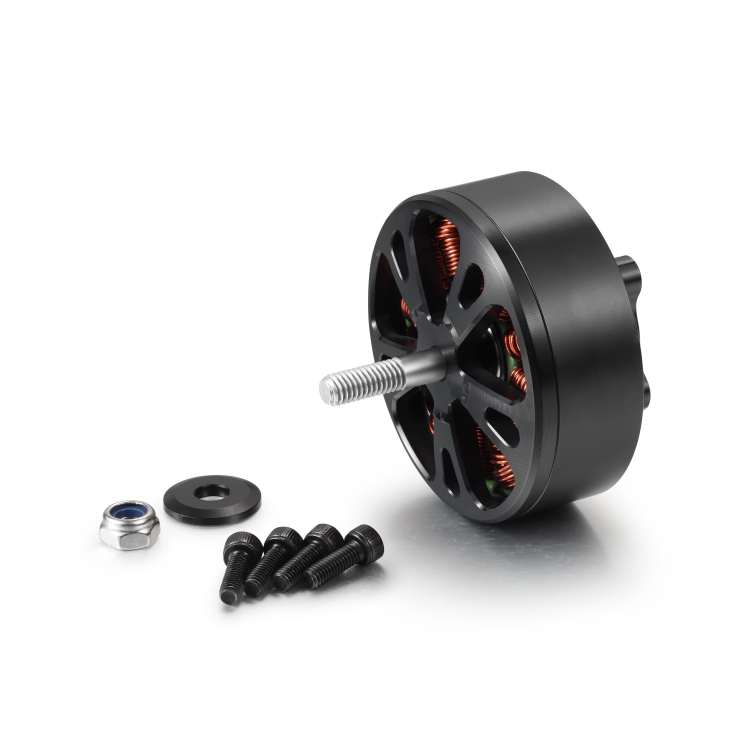

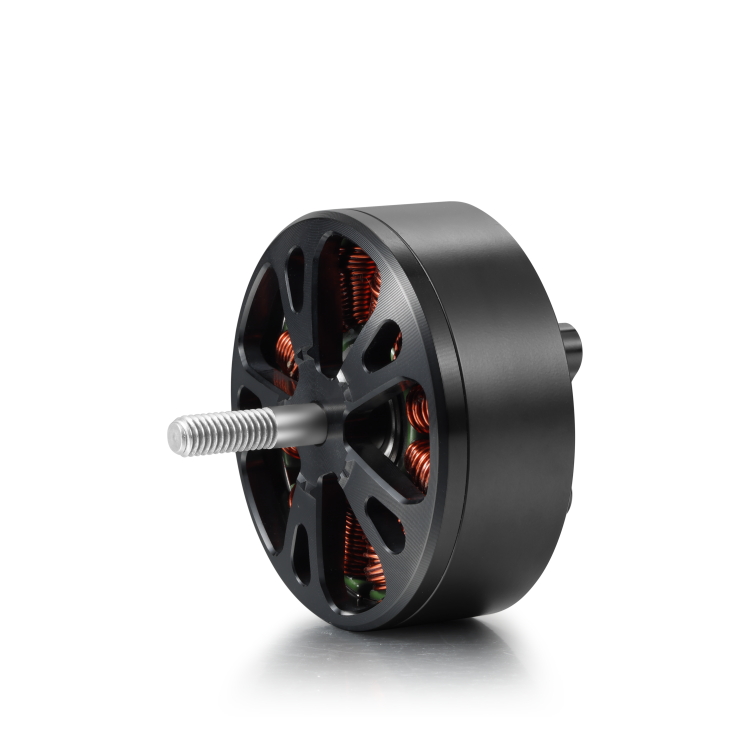

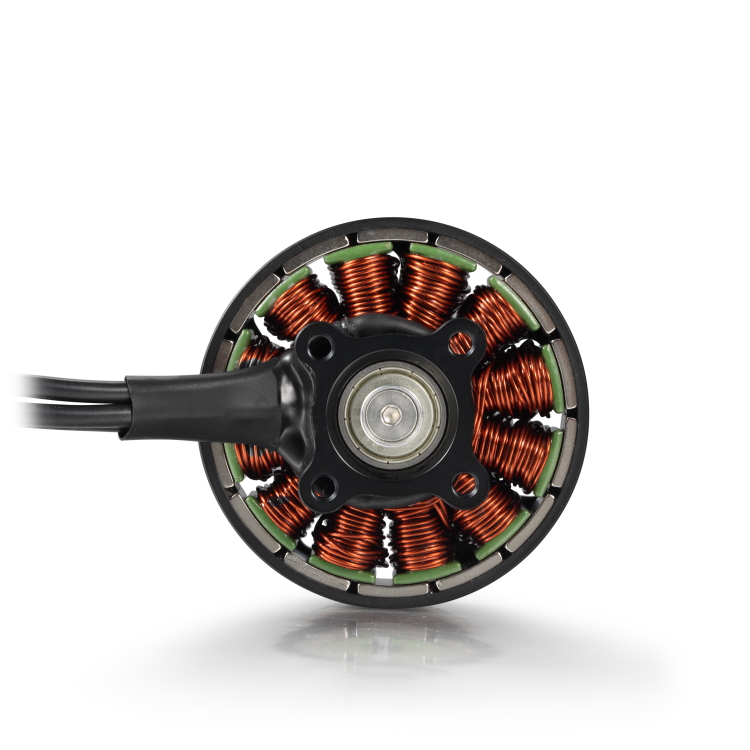

BG-F5315 270KV 430KV 8.5KG Payload FPV Motor for 15inch Heavy load UAV

Fpv motor

BG-F5315 270KV 430KV 8.5KG Payload FPV Motor for 15inch Heavy load UAV

TYPE: Fpv motor Get Free Solutions Download PDF

With a stator diameter of about 50 mm, these motors provide extremely high torque, strong thrust, and excellent efficiency, making them ideal for large industrial drones and agricultural UAV applications.

Motor dimensions60.4*35.3mm

Number of slots12N14P

Copper wire grade200℃

Shaft diameter6mm

Motor weight323g

Service life＞1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Recommended 5315 UAV Motor
Type：5315	Motor Dimension：φ61.5*64
Dynamic Balance：≤5mg	Configuration：12N14P
Shaft Diameter：6mm	Lead：14AWG*750mm
Screw Diameter：Φ30-M4-4	Prop Adapter Shaft Thread：M6
Recommended Voltage：KV280	Idle Current (10V)：2.2A
Max Power：2502W	Internal Resistance：23.3mΩ
Rated Voltage (LiPo)：6-12S	Peak Current：93.37A
Max Thrust：9.59kg	Weight：336.4g
Drone Frame Type：15-inch X4 Frame	Propeller：c15x10x3
Recommended Battery：44.4v	Recommended Takeoff：25kg
ESC：C80A 12s	Flight Controller：F7pro

Advantages

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BGS-F5315	KV	W	A	g	g/W	/	S	A
	270	2944.90	64.78	8517	2.89	EMP15*7-3	12	120
	430	3113.71	101.49	8194	2.63	EMP15*7-3	8	80

Test Data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor temperature
BGS-F5315 KV270	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	46.22	1493	0.45	5.77	4626	266.69	5.60	75
	45%	46.23	2077	0.46	6.82	5248	315.29	6.59
	50%	46.17	2548	0.65	9.50	5855	438.62	5.81
	55%	46.12	3120	0.69	12.33	6393	568.66	5.49
	60%	46.11	3606	0.86	16.93	6904	780.64	4.62
	65%	46.07	4240	0.93	19.50	7406	898.37	4.72
	70%	45.99	4755	1.05	23.15	7819	1064.67	4.47
	75%	45.95	5289	1.23	30.09	8289	1382.64	3.83
	80%	45.91	6016	1.37	35.11	8720	1611.90	3.73
	85%	45.81	6530	1.56	41.72	9139	1911.19	3.42
	90%	45.75	6705	1.50	40.82	9139	1867.52	3.59
	95%	45.60	7941	1.84	57.40	9867	2617.44	3.03
	100%	45.46	8517	1.94	64.78	10124	2944.90	2.89
BGS-F5315 KV430	40%	31.87	1927	0.42	9.28	5083	295.75	6.52	73
	45%	31.84	2498	0.54	13.08	5722	416.47	6.00
	50%	31.80	3065	0.66	17.94	6313	570.49	5.37
	55%	31.71	3688	0.79	23.15	6822	734.09	5.02
	60%	31.63	4270	0.92	29.18	7305	922.96	4.63
	65%	31.58	4789	1.04	34.94	7700	1103.41	4.34
	70%	31.52	5378	1.17	42.46	8170	1338.34	4.02
	75%	31.38	5839	1.25	50.32	8606	1579.04	3.70
	80%	31.28	6488	1.41	60.12	8958	1880.55	3.45
	85%	31.14	6851	1.49	68.90	9339	2145.55	3.19
	90%	31.04	7400	1.62	79.91	9601	2480.41	2.98
	95%	30.89	7847	1.74	91.25	9844	2818.71	2.78
	100%	30.68	8194	1.82	101.49	10029	3113.71	2.63

Drawing

Customizable Solutions

Parts

Applications


The 5315 brushless outrunner motor has rapidly become one of the most popular propulsion solutions for heavy-lift FPV drones and medium logistics UAVs.

Featuring a 53 mm stator diameter and 15 mm stator height, the 5315 combines exceptional torque density with relatively low weight, making it ideal for applications that require both speed and payload capacity.

Built for 15-Inch Heavy Lift Platforms


The 5315 is specifically optimized for:

1.15-inch long-range FPV drones;

2.Heavy cinematic platforms;

3.Reconnaissance UAVs;

4.Logistics transport drones;

5.Interceptor UAV systems.

Compared with 4315 motors, the larger stator diameter increases torque output while improving efficiency under heavy loads.

Outstanding Power Density

The 5315 motor typically produces between 2.5 kW and 4.2 kW of peak power depending on KV and battery configuration, while maximum thrust can exceed 9.5 kg per motor.

Under 12S high-voltage systems paired with 15-inch propellers, test aircraft carrying payloads above 20 kg have demonstrated flight durations exceeding 30 minutes in optimized conditions.
