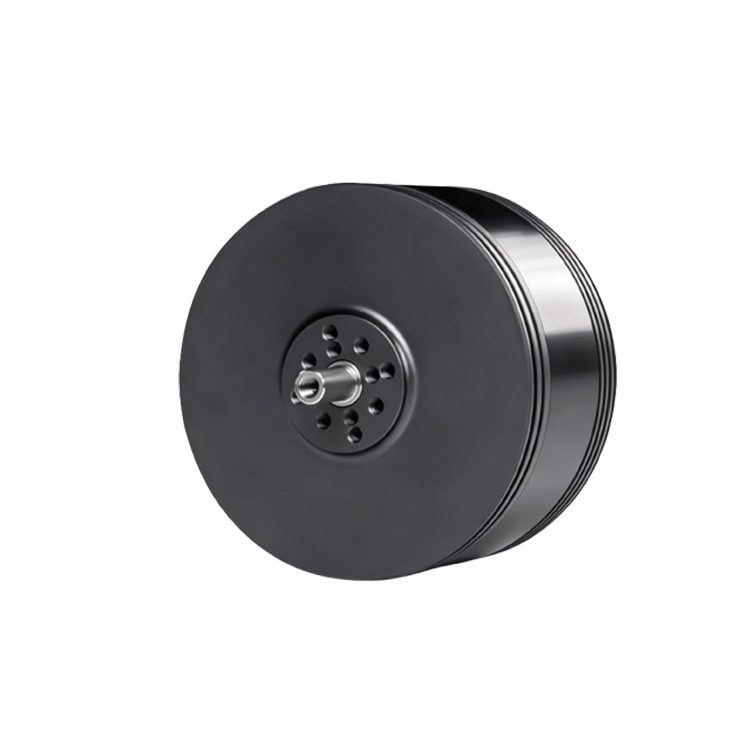

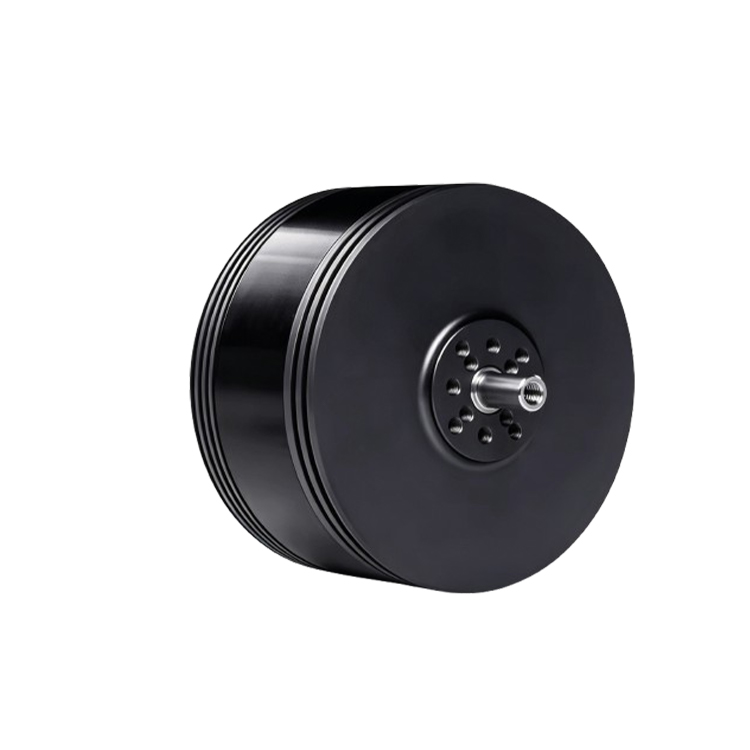

BG-F6218 130KV 200KV 13KG Payload Heavy Load FPV Brushless Motor for 20inch Agricultural Planting Drone

Fpv motor

BG-F6218 130KV 200KV 13KG Payload Heavy Load FPV Brushless Motor for 20inch Agricultural Planting Drone

TYPE: Fpv motor Get Free Solutions Download PDF

The BGS F6218 outrunner brushless motor is engineered for super large heavy-lift FPV drones. It boasts extreme torque and powerful stable thrust to carry heavy payloads, with optimized heat dissipation design that ensures consistent efficient power output during long-duration aerial photography and heavy-load flight missions.

Motor dimensions69.5*39.5mm

Number of slots24N22P

Copper wire grade200℃

Shaft diameterIN: 8mm

Motor weight445.1±12g

Service life>1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Item	Specification
Model:F6218	Enameled Wire Grade:Class H (180℃ High Temperature Resistant)
Rated KV:200KV	Service Life:≥1000 Hours
Motor Dimension:Outer Dia 69.5mm × Thickness 39.5mm	Outer Dia 69.5mm × Thickness 39.5mm
Shaft Diameter:8mm	Max Static Thrust:20kg (6S LiPo, matched 17-inch propeller)
Net Weight (with wire):445.1±12g	Applicable Battery:6S LiPo Battery
Stator Slot Structure:12 Slots	Matched Propeller:17-inch Heavy Load Propeller

Advantages

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BGS-F6218	KV	W	A	g	g/W	/	S	A
BGS-F6218	200	998	51.8	10400	10.42	/	24	80

Test Data

Model	Throttle	Voltage	Current	Input Power	Speed	Thrust	Power Efficiency
Model	%	V	A	W	RPM	gf	gf/W
TORHANG F6218 200KV	30	25.11	9.75	244.8	3810	989	4.04
	35	25.07	13.03	326.7	4505	1395	4.27
	40	25.03	18.56	464.6	5145	1659	3.57
	45	24.98	23.55	588.3	5765	1947	3.31
	50	24.94	32.54	811.5	6380	2451	3.02
	55	24.89	38.52	958.8	6970	2943	3.07
	60	24.84	50.58	1256.4	7535	3455	2.75
	65	24.79	57.97	1437.1	8070	3981	2.77
	70	24.74	66.72	1650.7	8580	4490	2.72
	75	24.69	72.7	1795	9055	4972	2.77
	80	24.64	85.04	2095.4	9495	5511	2.63
	85	24.59	98.86	2431	9895	6078	2.5
	90	24.54	115.85	2842.9	10250	6595	2.32
	95	24.48	127.89	3130.7	10555	7075	2.26
	100	24.43	140.52	3432.9	10804	20015	5.83
