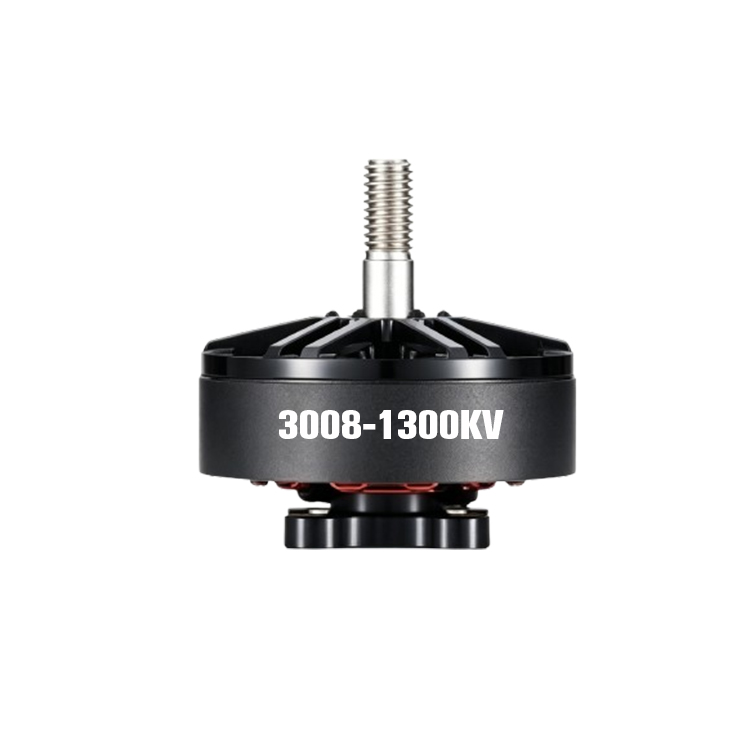

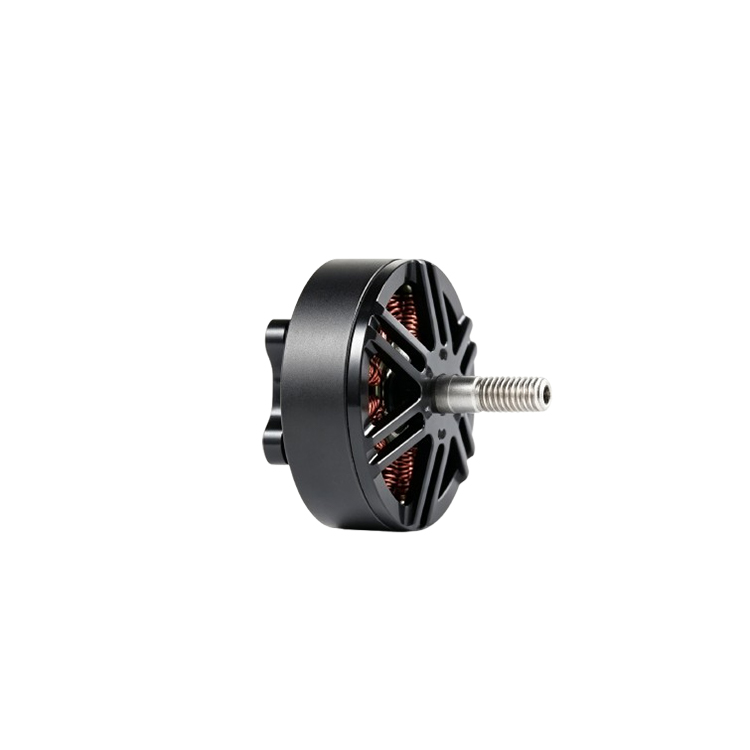

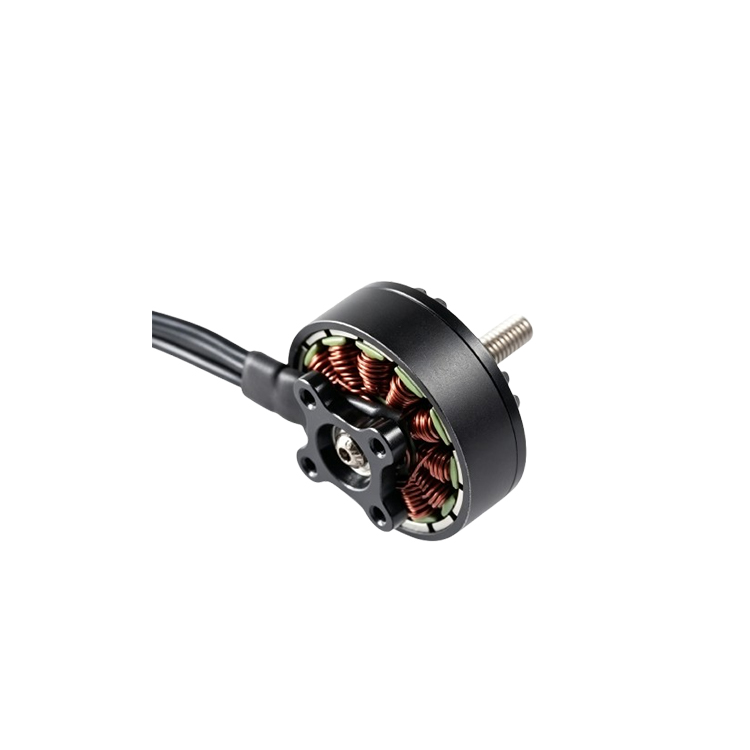

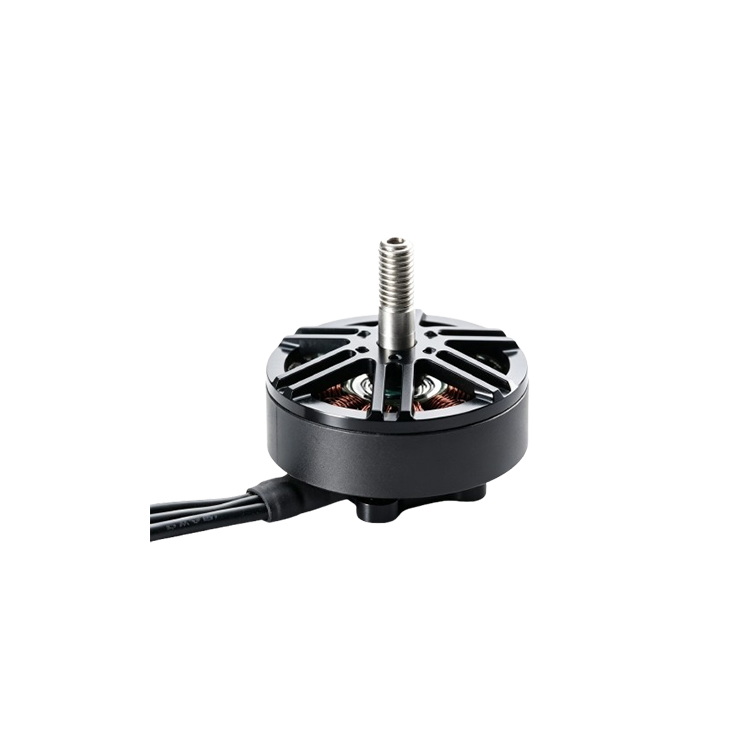

BG-F3008 6S 1300KV 3.1KG Drone Motor for 7–8 Inch Long Range FPV

Fpv motor

BG-F3008 6S 1300KV 3.1KG Drone Motor for 7–8 Inch Long Range FPV

TYPE: Fpv motor Get Free Solutions Download PDF

BGS F3008, 1300KV, designed for 6S LiPo battery Matched with HQ 8×4×3 propeller, the test data shows its peak power efficiency reaches 4.3 gf/W at 35% throttle, serving as the most energy-saving hovering range. As throttle increases, rotating speed, current and thrust rise continuously while efficiency gradually declines. At full throttle, it delivers a maximum input power of 1269.2W, peak current 52.62A, top speed 19866RPM and maximum thrust of 2782gf, offering abundant power margin. This motor is well-suited for long-term stable operation of medium & small multirotor UAVs for aerial photography, mapping and inspection missions.

Motor dimensions35.7*36.4mm

Number of slots12N14P

Copper wire grade200℃

Shaft diameterIN: 4 mm

Motor weight63.5/57.5g

Service life>1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Recommended 3008 UAV Motor
Model：BASIC30008	Single Motor Weight：42.6±1.1g
Supported Voltage：6S LiPo Battery	Internal Structure：12N14P
KV Rating：1300KV	Magnet Grade：High-strength high-temperature resistant anti-demagnet magnet
Stator Size：30mm × 8mm	Matching Propeller：7-inch / 8-inch large-diameter propeller
Shaft Diameter：4mm	Typical Application：7~8-inch Long Range, Freestyle, Cinematic & Heavy Payload FPV Drone

Advantages

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F3008	KV	W	A	g	g/W	/	S	A
	1155	1314.4	59.3	2815	2.14	T-7546-3	6S	80
	1350	1680.9	69.7	3188.7	1.90	T-7546-3	6S	80
	1500	1833.9	76.4	3099.8	2.17	T-7546-3	6S	100

Test Data

Model	Throttle	Voltage	Current	Input Power	Speed	Thrust	Power Efficiency
Model	%	V	A	W	RPM	gf	gf/W
BGS-F3008-1300KV HQ 8X4X3 6S	30	25	3.57	89.3	5984	362	4.1
	35	24.97	4.88	121.9	7070	528	4.3
	40	24.93	7.04	175.5	7962	524	3
	45	24.85	8.97	222.9	8958	716	3.2
	50	24.8	12.32	305.5	9946	903	3
	55	24.73	14.44	357.1	10938	1096	3.1
	60	24.68	19.09	471.1	11921	1286	2.7
	65	24.59	21.73	534.3	12922	1474	2.8
	70	24.52	24.7	605.6	13914	1642	2.7
	75	24.43	26.95	658.4	14901	1826	2.8
	80	24.37	31.62	770.6	15898	2022	2.6
	85	24.31	36.81	894.9	16890	2216	2.5
	90	24.23	43.6	1056.4	17887	2402	2.3
	95	24.17	47.8	1155.3	18879	2598	2.2
	100	24.12	52.62	1269.2	19866	2782	2.2

Drawing

Customizable Solutions

Parts

Applications


Application Scenarios

7-8英寸无人机.png 1.7-inch / 8-inch long-range cruising FPV drone

2.Large-size cinematic aerial photography FPV drone

3.Big-frame heavy payload freestyle FPV aircraft

4.Light lifting & survey mapping industrial multirotor drone

Matching Configuration Recommendation（1300KV Version)

1.Propeller: 7×5 / 8×5 long-range high-efficiency propeller

2.ESC: 50A~70A 6S high-current 4-in-1 brushless ESC

3.Battery: 6S 1800~3000mAh high-capacity LiPo battery

4.Frame: Standard 7-inch / 8-inch long-range FPV frame

Product Advantages

-Large 30008 Stator High Torque Design: Excellent low-speed torque and strong load capacity, perfectly match large 7/8-inch propellers

-6S Voltage Platform Tuning: Balanced power output & energy efficiency, great choice for long-distance endurance flight

-High-Temperature Anti-Demagnet Magnet: Suppress heat buildup under sustained heavy-load operation, prevent permanent magnet demagnetization & power decay

-12N14P Optimized Winding Structure: Smooth rotation, small cogging torque, linear throttle response for stable and precise control

-Thicker 4mm Output Shaft: Higher structural rigidity, anti-vibration and anti-bending when driving large propellers

-Wide Compatibility: Fits mainstream 7/8-inch long-range frames, high-current 4-in-1 ESCs, simple replacement and assembly
