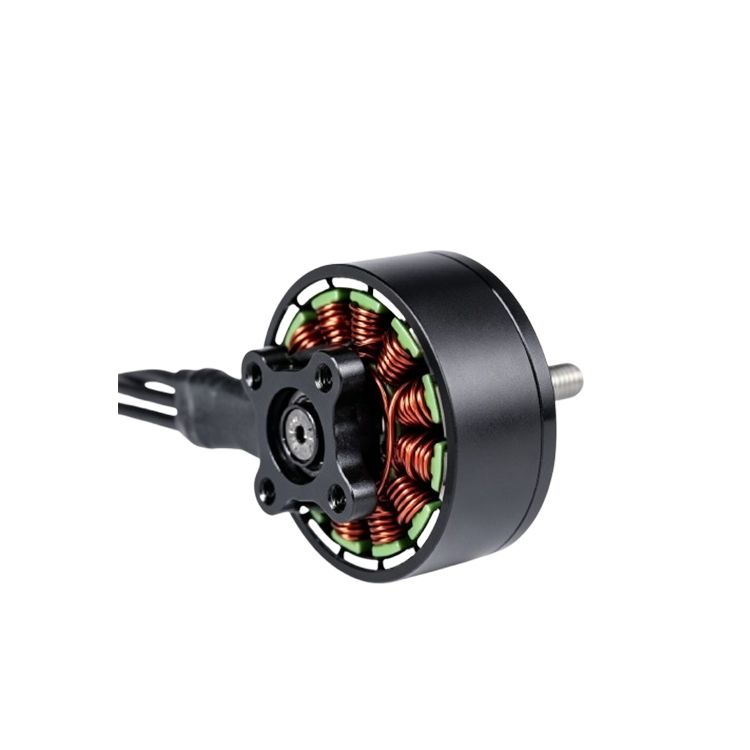

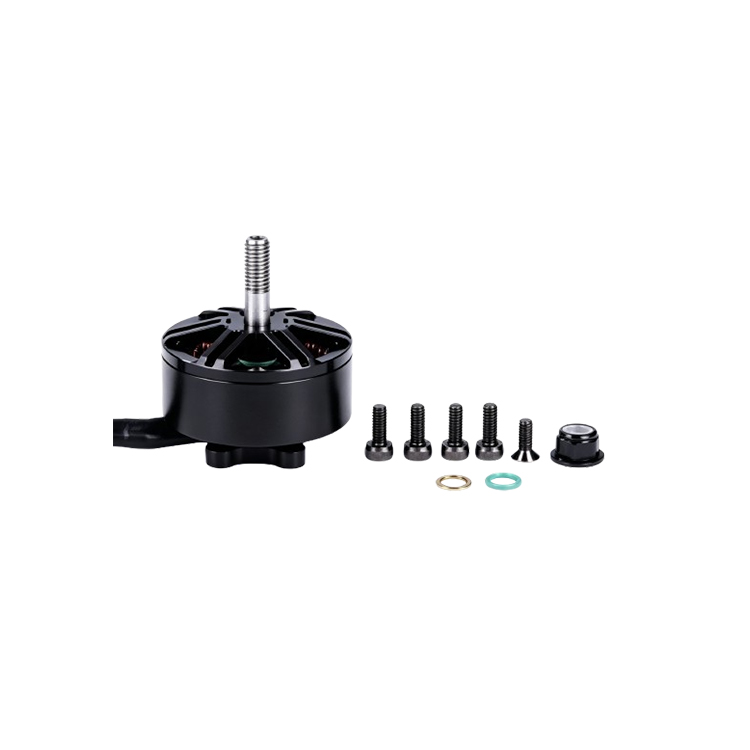

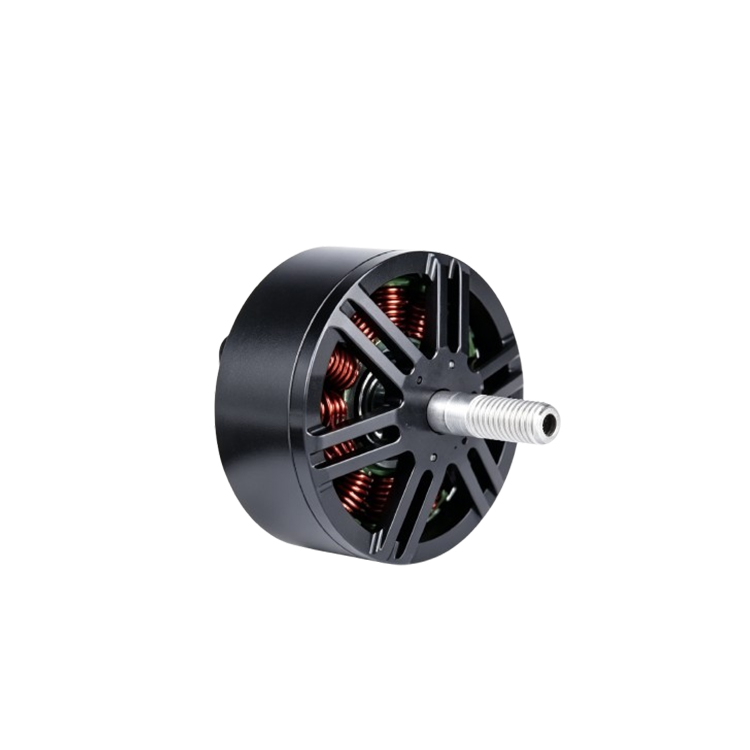

BG-F3110 700KV 900KV 3.2KG Payload Durable Brushless Motor for 9inch Racing FPV Drone

Fpv motor

BG-F3110 700KV 900KV 3.2KG Payload Durable Brushless Motor for 9inch Racing FPV Drone

TYPE: Fpv motor Get Free Solutions Download PDF

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

Motor dimensions37.2*27.8mm

Number of slots12N14P

Copper wire grade200℃

Shaft diameterM5

Motor weight86g

Service life＞1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Recommended 3110 UAV Motor
Model：BGS3110	Single Motor Weight：86±1.1g
Supported Voltage：6S LiPo Battery	Internal Structure：12N14P
KV Rating：900KV 1250KV	Magnet Grade：High-strength high-temperature resistant anti-demagnet magnet
Stator Size：37.2*27.8mm	Matching Propeller：9-inch / 10-inch large-diameter propeller
Shaft Diameter：4mm	Typical Application：9~10-inch Long Range, Freestyle, Cinematic & Heavy Payload FPV Drone

Advantages

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F3110	KV	W	A	g	g/W	/	S	A
	900	1032	46.5	2920	2.8	9050	6S	100
	950	1150	51.8	3180	2.8	1050	6S	100
	1250	1181	53.2	3230	2.7	8040	6S	100

Test Data

Model	Throttle	Voltage	Current	Input Power	Speed	Thrust	Efficiency	MAX
BGS-F3110-900KV(Prop)9x5x3（6S）	%	V	A	W	RPM	gf	gf/W	/
	30	25	2.46	61.5	4982	428	7	73℃
	35	25	3.07	76.8	5695	581	7.6
	40	25	4.3	107.5	6417	714	6.6
	45	25	5.9	147.5	7164	870	5.9
	50	25	8.12	203	8025	1058	5.2
	55	25	10.68	267	8933	1220	4.6
	60	25	14.08	352	9686	1508	4.3
	65	25	16.01	400.3	10838	1709	4.3
	70	25	20.25	506.3	11048	1937	3.8
	75	25	25.4	635	12271	2195	3.5
	80	25	29.73	743.3	12515	2474	3.3
	85	25	36.65	916.3	13005	2747	3
	90	25	40.85	1021.3	13559	2864	2.8
	95	25	49.42	1235.5	14027	3160	2.6
	100	25	54.47	1361.8	14518	3387	2.5
BGS-F3110-900KV(Prop)1050-3R（6S）	30	25	5.06	126.5	7652	460	3.6	87℃
	35	25	5.67	141.8	8293	613	4.3
	40	25	7.2	180	8934	746	4.1
	45	25	9.9	247.5	9575	902	3.6
	50	25	12.12	303	10216	1090	3.6
	55	25	14.68	367	10857	1336	3.6
	60	25	18.08	452	9086	1624	3.6
	65	25	20.91	522.8	10238	1839	3.5
	70	25	25.15	628.8	10440	2067	3.3
	75	25	30	750	11663	2342	3.1
	80	25	34.33	858.3	11822	2621	3.1
	85	25	41.55	1038.8	12312	2896	2.8
	90	25	45.75	1143.8	12866	3087	2.7
	95	25	54.32	1358	13334	3383	2.5
	100	25	59.37	1484.3	13825	3616	2.4

Drawing

Customizable Solutions

Parts

Applications


Built for High-Efficiency Flight


The 3110 motor adopts a large stator design with a 31mm stator diameter and 10mm stator height, providing significantly more torque than conventional 2807 or 2812 motors while maintaining relatively low weight.

The larger electromagnetic volume allows the motor to spin larger propellers more efficiently, improving thrust generation while reducing overall current consumption during cruise flight.

This makes the 3110 particularly suitable for:

-8-inch long-range FPV drones

-9-inch cinematic platforms

-10-inch heavy-lift FPV drones

-Industrial reconnaissance UAVs

-Logistics and delivery drones

-Counter-UAV interceptor platforms

Exceptional Power-to-Weight Ratio

Despite weighing only approximately 80-90 grams including wires, the 3110 motor is capable of delivering peak power outputs exceeding 1,400W to 2,000W, depending on KV configuration and propeller selection.

Under optimized conditions, maximum thrust can exceed 3.0kg to 4.1kg per motor, allowing quadcopters equipped with four motors to achieve total thrust figures well above 12kg.

This outstanding thrust reserve enables:

1.Aaggressive acceleration;

2.Rapid climbing performance;

3.Stable payload carrying capability;

4.Superior wind resistance.

Multiple KV Options for Different Missions

Different UAV missions require different motor characteristics.For high-speed interceptor drones or long-range FPV cruisers, popular KV options include:

-900KV

-1150KV

-1250KV

-Custom KV configurations upon request

Lower KV variants generally provide better efficiency with larger propellers and higher voltage systems, while higher KV versions favor speed and throttle response.

Optimized for 6S, 8S and 12S Power Systems

Modern UAV platforms increasingly utilize higher voltage architectures to improve efficiency and reduce current draw.

The 3110 motor supports:

1.6S LiPo systems for FPV and cinematic drones;

2.8S systems for interceptor and heavy-duty platforms;

3.12S systems for industrial UAV applications and logistics drones.

Higher voltage operation reduces cable losses, lowers motor temperatures, and improves overall system efficiency during long endurance missions.
