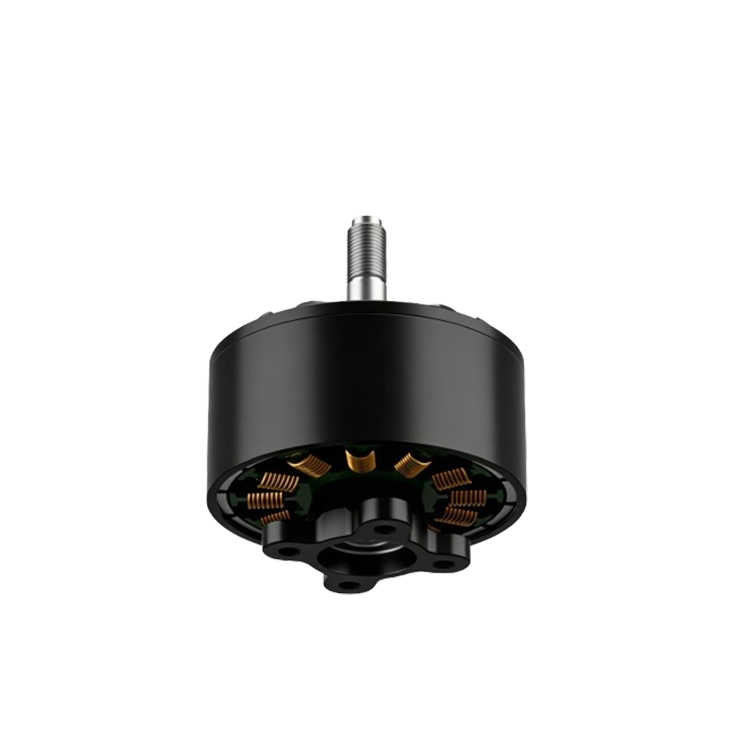

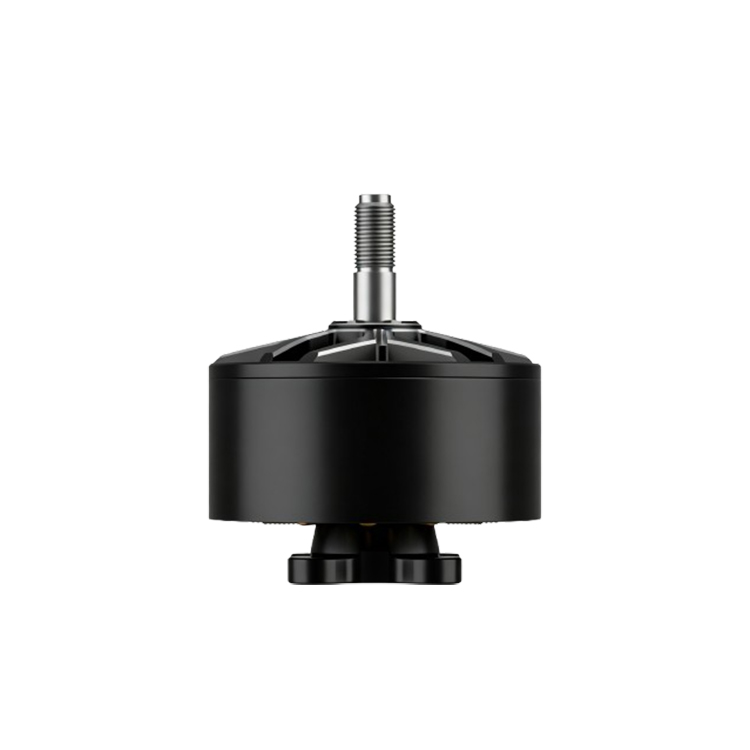

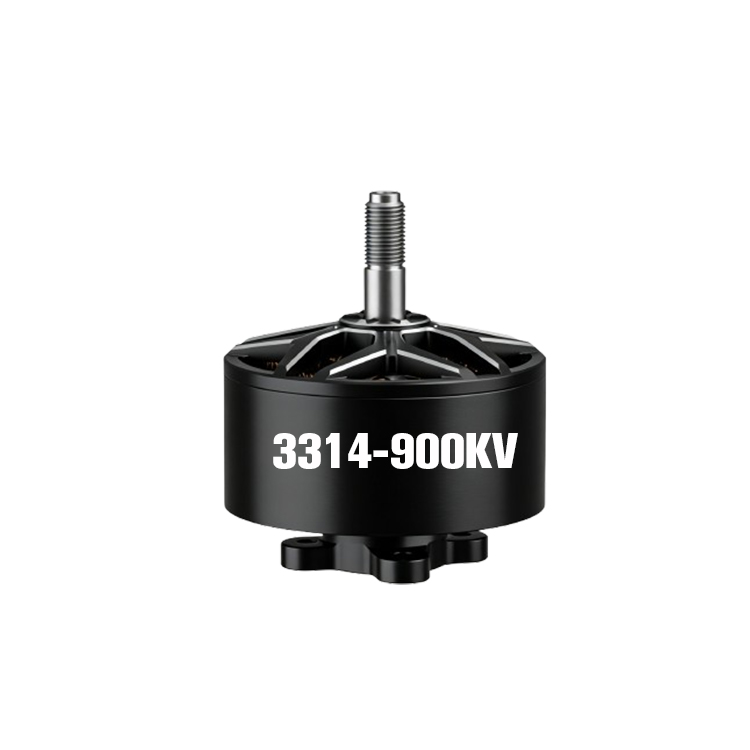

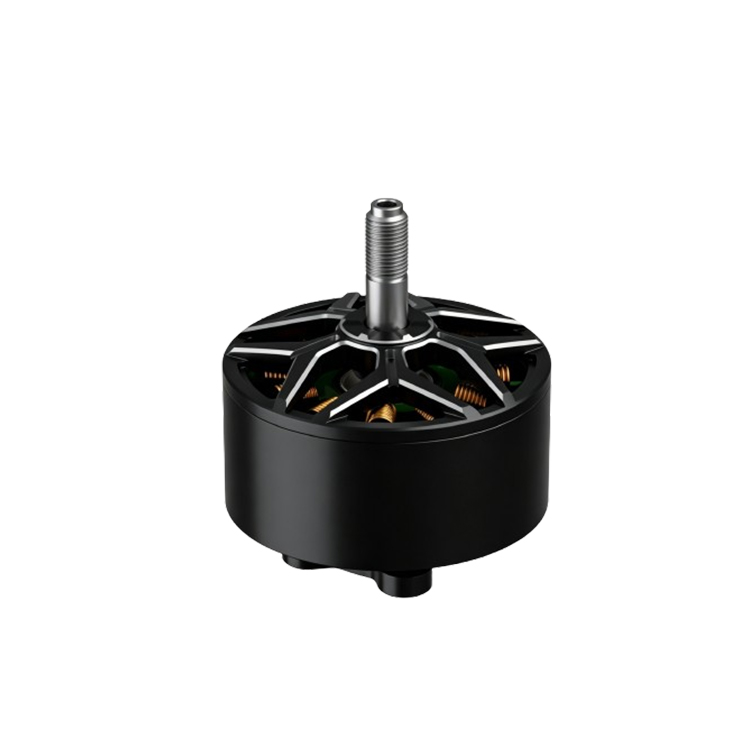

BG-F3314 700KV 900KV 4.2KG Payload Brushless Motor for 11inch Survey Drone

Fpv motor

BG-F3314 700KV 900KV 4.2KG Payload Brushless Motor for 11inch Survey Drone

TYPE: Fpv motor Get Free Solutions Download PDF

The BGS F3314 outrunner brushless motor is designed for medium-size FPV drones. It provides strong steady thrust, sensitive throttle response and high efficiency, ideal for freestyle flight and aerial photography missions.

Motor dimensions38.6*29.8mm

Number of slots12N14P

Copper wire grade200℃

Shaft diameterIN: 5mm

Motor weight114.4±3g

Service life>1000h

Technical specificationsView details Basic dataView details Test dataView details DrawingView details ApplicationsView details Custom solutionsView details

Technical Specifications

Recommended 3314 UAV Motor
Model:F3314	Stator Slot Structure:12 Slots
Optional KV:700KV / 900KV	Enameled Wire Grade:Class H (180℃ High Temperature Resistant)
Motor Dimension:Outer Diameter 42mm × Stator Thickness 28mm	Outer Diameter 42mm × Stator Thickness 28mm
Shaft Diameter:5mm	Rated Service Life:≥1000 Hours
Total Weight (with wires):216±6g	Maximum Static Thrust:4.2kg (Tested under 6S LiPo battery)
Stator Slot Structure:12 Slots	Matching Propeller:700KV: 8-inch propeller; 900KV: 6~7-inch propeller

Advantages

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F3314	KV	W	A	g	g/W	/	S	A
BGS-F3314	900	1366.1	58.48	4191	3.06	NMBφ1155	6S	120

Test Data

Model	Throttle	Voltage	Current	Input Power	Speed	Thrust	Power Efficiency
BGS-F3314-900KV	%	V	A	W	RPM	gf	gf/W
	30	25.03	4.92	123.1	5675	495	4.02
	35	25	6.58	164.5	6728	703	4.27
	40	24.96	9.37	233.9	7682	835	3.57
	45	24.91	11.89	296.2	8625	981	3.31
	50	24.87	16.38	407.4	9577	1232	3.02
	55	24.82	19.42	482	10515	1479	3.07
	60	24.77	25.47	631.9	11436	1738	2.75
	65	24.72	29.12	720.9	12342	1997	2.77
	70	24.67	33.48	825.9	13228	2249	2.72
	75	24.62	36.45	897.4	14095	2486	2.77
	80	24.57	42.53	1045	14939	2749	2.63
	85	24.52	49.35	1210.1	15761	3026	2.5
	90	24.47	57.86	1415.8	16557	3285	2.32
	95	24.41	63.69	1554.7	17326	3512	2.26
	100	24.36	69.94	1703.7	18065	4501	2.64

Drawing

Customizable Solutions

Parts

1.Mini small-capacity agricultural pesticide spraying drone

2.Ultra-light payload logistics & cargo delivery UAV

3.Entry-level FPV racing & aerial photography drone

4.Custom small-size industrial multirotor drone

Product Advantages

Dual KV Optional Design: 700KV focuses on long flight time and high efficiency; 900KV features fast throttle response and agile maneuver, matching various small drone demands.

Lightweight Compact Structure: Small size and moderate thrust output, perfectly suitable for small-size light-load multirotor aircraft.

High Temperature Resistant Winding Structure: Adopts Class H high-temperature enameled wire, effectively preventing overheating and demagnetization under long-term continuous operation.

Precision Dynamic Balance Calibration: Low vibration and low running noise during operation, effectively extending overall drone service life.

Wide Compatibility: Compatible with most mainstream small-medium brushless ESCs on the market, easy for installation, replacement and maintenance.
